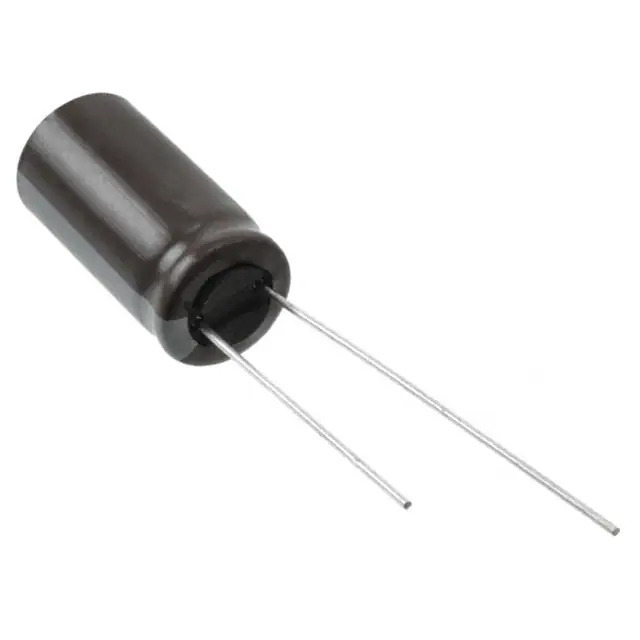

ELXV100ELL182MK20S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXV100ELL182MK20S

Part No ELXV100ELL182MK20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1800UF 20% 10V RADIAL / 1800 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXV
Package Bulk
Product Status Active
Capacitance 1800 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 952 mA @ 120 Hz
Ripple Current @ High Frequency 1.36 A @ 100 kHz
Impedance 46 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358006-ELXV100ELL182MK20S
Ultra Librarian 3D Model Ultra Librarian ELXV100ELL182MK20S CAD Model

Description

The LXV series aluminum electrolytic capacitor is a high-quality component designed specifically for automotive applications.

  • Product Name: LXV Series
  • Manufacturer: United Chemi-Con
  • Capacitance: 1800 µF
  • Voltage Rating: 10 V
  • Operating Temperature: -55°C to 105°C
  • Package: Radial, Can
  • Mounting Type: Through-Hole
  • Diameter: 0.492"
  • Height: 0.846"
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current (Low Frequency): 952 mA
  • Ripple Current (High Frequency): 1.36 A
  • Application: Automotive
