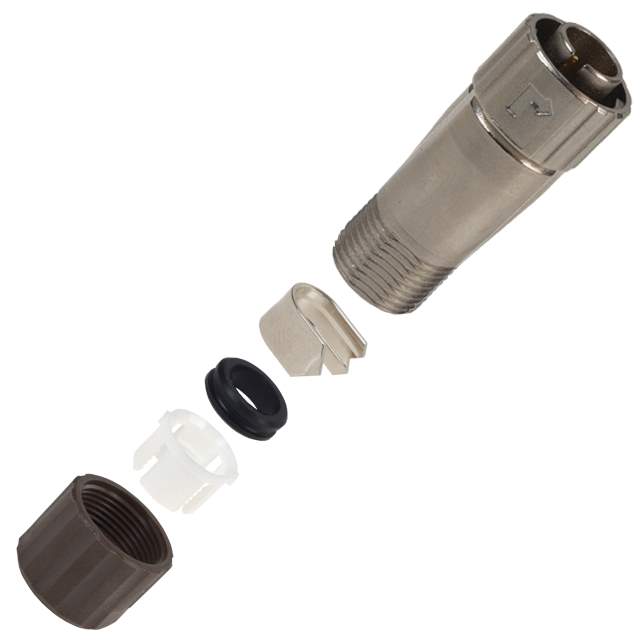

LF07WBP-6P Real Image
Same model may have multiple batches, images only for reference.

LF07WBP-6P

Part No LF07WBP-6P
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 6P GOLD SLDR CUP / 6 Position Circular Connector Plug, Male Pins Solder Cup
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Product Status Obsolete
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert 7
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Brown, Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features Backshell, Clamp, Coupling Nut, Strain Relief
Shielding Shielded
Current Rating (Amps) 2A
Voltage Rating 30VAC, 42VDC
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Zinc Alloy, Nickel
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Telecommunications
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number HR543,*LF07WBP-6P,Q9856196,LF07WBP6P
Standard Package 50
Win Source Part Number 1334449-LF07WBP-6P
Ultra Librarian 3D Model Ultra Librarian LF07WBP-6P CAD Model

Description

The Hirose Electric Co Ltd 1334449-LF07WBP-6P is a circular connector assembly that comes with a bulk packaging.

  • Packaging: Bulk
  • Number of Positions: 6
  • Color: Brown and Silver
  • Connector Features: Backshell, Clamp, Coupling Nut, and Strain Relief
  • Connector Type: Plug with Male Pins
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Shielding: Yes
  • Ingress Protection: IP67/IP68
  • Contact Material: Copper Alloy
  • Voltage Rating: 30VAC and 42VDC
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Shell Size: 7
  • Insert Material: Polyphenylene Sulfide (PPS)
  • Operating Temperature: -25°C ~ 85°C
