Same model may have multiple batches, images only for reference.

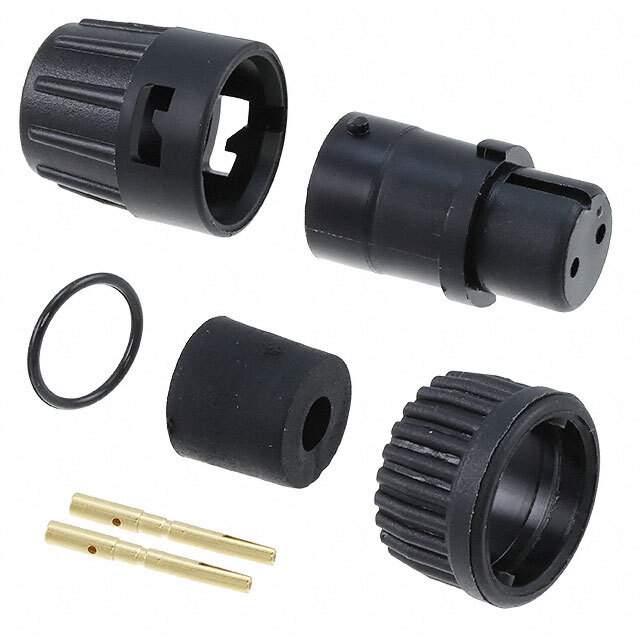

6380-2SG-311 Real Image
Same model may have multiple batches, images only for reference.

6380-2SG-311

Part No 6380-2SG-311
Manufacturer Conxall/Switchcraft
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE 2POS GOLD CRIMP / 2 Position Circular Connector Plug, Female Sockets Crimp
Datasheet
6380-2SG-311 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Conxall/Switchcraft
Packaging Bulk
Connector Type Plug, Female Sockets
Number of Positions 2
Mounting Free Hanging (In-Line)
Termination Crimp
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA), Nylon
Contact Finish - Mating Gold
Color Black
Ingress Protection Weathertight
Features Backshell
Shielding Unshielded
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600V
Cable Opening 0.090" ~ 0.140" (2.29mm ~ 3.56mm)
Temperature Range - Operating -40°C ~ 115°C
Backshell Material, Plating Polyamide (PA), Nylon
Contact Material Brass
Applications Automotive, Communication Systems, Instrumentation
Base Product Number 6380-2SG
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 6380-2SG-311-ND,SC3187
Standard Package 100
Win Source Part Number 1334601-6380-2SG-311
Ultra Librarian 3D Model Ultra Librarian 6380-2SG-311 CAD Model

Description

The Conxall/Switchcraft 1334601-6380-2SG-311 is a circular connector assembly designed for use in automotive, communication systems, and instrumentation applications.

  • Manufacturer: Conxall/Switchcraft
  • Applications: Automotive, Communication Systems, Instrumentation
  • Ingress Protection: Weathertight
  • Shell Material: Polyamide (PA) and Nylon
  • Fastening Type: Bayonet Lock
  • Connector Type: Plug with Female Sockets
  • Voltage Rating: 600V
  • Shielded: Unshielded
  • Contact Material: Brass
  • Contact Finish: Gold
  • Orientation: Keyed
  • Cable Opening: 0.090" ~ 0.140" (2.29mm ~ 3.56mm)
  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Packaging: Bulk
  • Standard Package: 100
