Same model may have multiple batches, images only for reference.

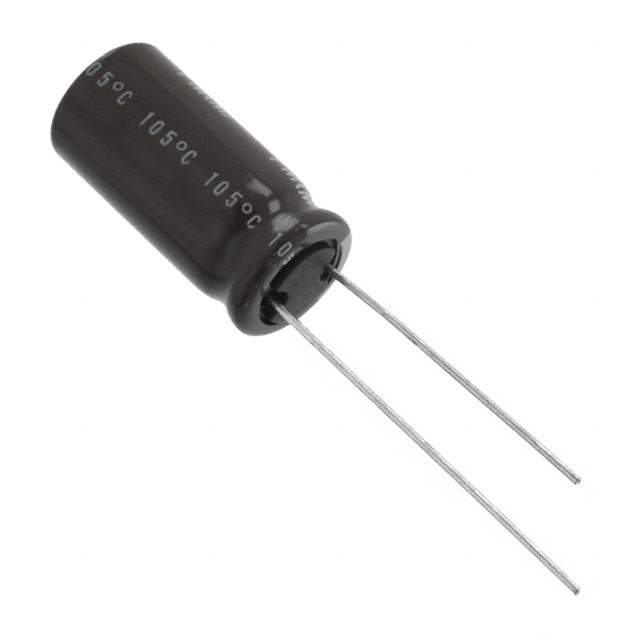

UPM1J101MPD1TD Real Image
Same model may have multiple batches, images only for reference.

UPM1J101MPD1TD

Part No UPM1J101MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V RADIAL  /  100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 495 mA @ 120 Hz
Ripple Current @ High Frequency 750 mA @ 10 kHz
Impedance 120 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-11946-3,493-11946-1
Standard Package 500
Win Source Part Number 981535-UPM1J101MPD1TD
Ultra Librarian 3D Model Ultra Librarian UPM1J101MPD1TD CAD Model

Description

The Nichicon UPM series aluminum electrolytic capacitor has a capacitance of 100 µF and a voltage rating of 63V.

  • Capacitance: 100 µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Impedance: 120 mOhms
  • Ripple Current @ Low Frequency: 495 mA @ 120 Hz
  • Ripple Current @ High Frequency: 750 mA @ 10 kHz
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Polarization: Polarized
  • Package: Radial, Can
  • Operating Temperature Range: -55°C to 105°C
  • Status: Not For New Designs
  • Packaging: Cut Tape (CT), Tape & Box (TB)
