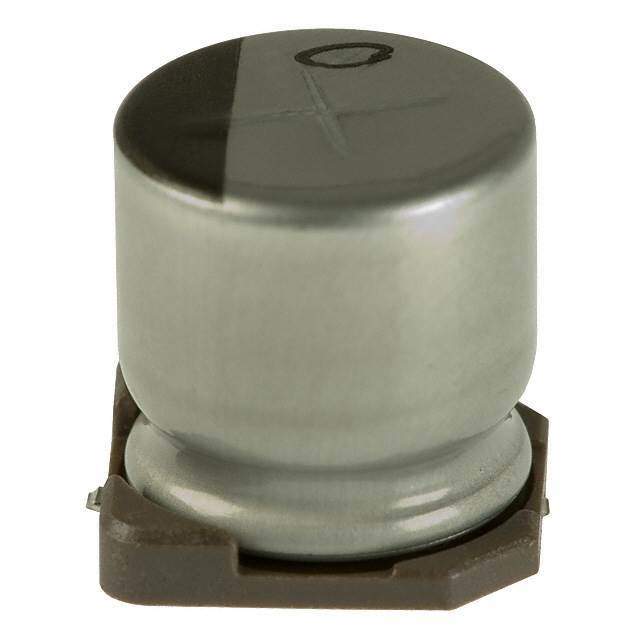

Same model may have multiple batches, images only for reference.

UUD1V331MNL1GS

Name: UUD1V331MNL1GS
Brand: Nichicon
SKU: 1339463
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UUD1V331MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 35V SMD / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet	UUD1V331MNL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUD
Package	Tape & Reel
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	335 mA @ 120 Hz
Ripple Current @ High Frequency	670 mA @ 100 kHz
Impedance	90 mOhms
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1339463-UUD1V331MNL1GS
Ultra Librarian 3D Model	Ultra Librarian UUD1V331MNL1GS CAD Model

Alternative Products

Description

The UUD1V331MNL1GS is an aluminum electrolytic capacitor from Nichicon.

Capacitance: 330 µF
Voltage Rating: 35 V
Polarization: Polarized
Tolerance: ±20%
AEC-Q200: Yes
Impedance: 90 mOhms
ESR: Not provided
Ripple Current (Low Frequency): 335 mA @ 120 Hz
Ripple Current (High Frequency): 670 mA @ 100 kHz
Lifetime: 5000 hours @ 105°C
Application: Automotive
Packaging: Tape and Reel
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type: Surface Mount
Temperature Range: -55°C to 105°C
