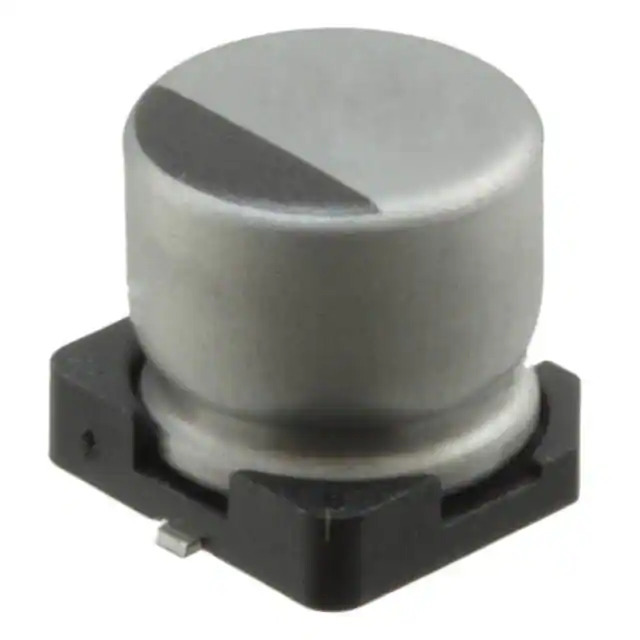

Same model may have multiple batches, images only for reference.
UUR1E470MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUR1E470MCL1GS

Part No UUR1E470MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 25V SMD / 47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet
UUR1E470MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUR
Package Tape & Reel
Product Status Last Time Buy
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization -
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 65 mA @ 120 Hz
Ripple Current @ High Frequency 108.55 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360166-UUR1E470MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUR1E470MCL1GS CAD Model

Description

The Nichicon UUR1E470MCL1GS is an aluminum electrolytic capacitor from Nichicon's UUR series.

  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Rated Voltage: 25V
  • Application: General Purpose
  • Ripple Current (120 Hz): 65 mA
  • Ripple Current (10 kHz): 108.55 mA
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mountable
  • Diameter: 0.248"
  • Height: 0.240"
  • Lifetime: 2000 hours @ 85°C
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Manufacturer: Nichicon
