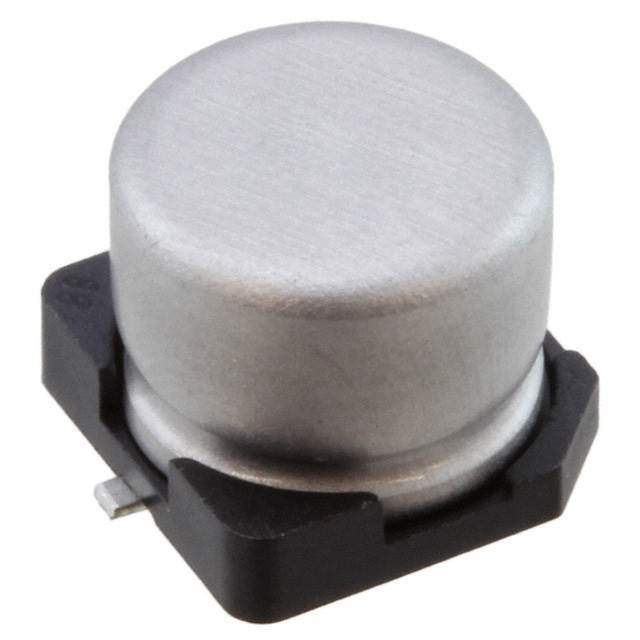

Same model may have multiple batches, images only for reference.

UWP1E100MCL1GB

Name: UWP1E100MCL1GB
Brand: Nichicon
SKU: 1340850
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UWP1E100MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10UF 20% 25V SMD / 10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C
Datasheet	UWP1E100MCL1GB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UWP
Package	Tape & Reel
Capacitance	10 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	1000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Bi-Polar
Applications	General Purpose
Ripple Current @ Low Frequency	27 mA @ 120 Hz
Ripple Current @ High Frequency	40.5 mA @ 10 kHz
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.217" (5.50mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1340850-UWP1E100MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWP1E100MCL1GB CAD Model

Alternative Products

Description

The UWP1E100MCL1GB is an aluminum electrolytic capacitor designed for general-purpose applications.

Manufacturer: Nichicon
Part Number: UWP1E100MCL1GB
Type: Aluminum Electrolytic Capacitor
Application: General Purpose
Size: 0.248” Dia (6.30mm)
Height: 0.217” (5.50mm)
Packaging: Tape and Reel
Standard Package: 1,000
Capacitance: 10 μF
Tolerance: ±20%
Voltage Rating: 25 V
Polarization: Bi-Polar
Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
Series: UWP
ECCN: EAR99
