Same model may have multiple batches, images only for reference.

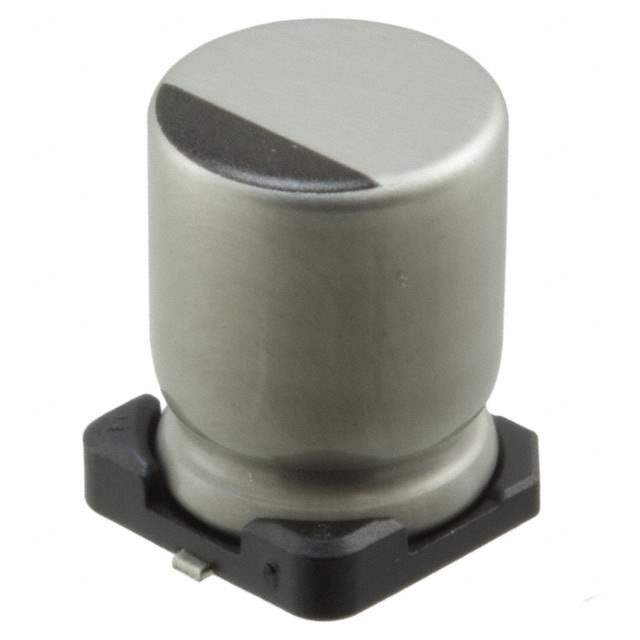

UWD1A331MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1A331MCL1GS

Part No UWD1A331MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 10V SMD / 330 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UWD1A331MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 225 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Impedance 170 mOhms
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340618-UWD1A331MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1A331MCL1GS CAD Model

Description

The Nichicon UWD is an aluminum electrolytic capacitor that has a capacitance of 330 µF and a voltage rating of 10V.

  • Capacitance: 330 µF
  • Voltage - Rated: 10V
  • Tolerance: ±20%
  • Impedance: 170 mOhms
  • Polarization: Polar
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.394" (10.00mm)
