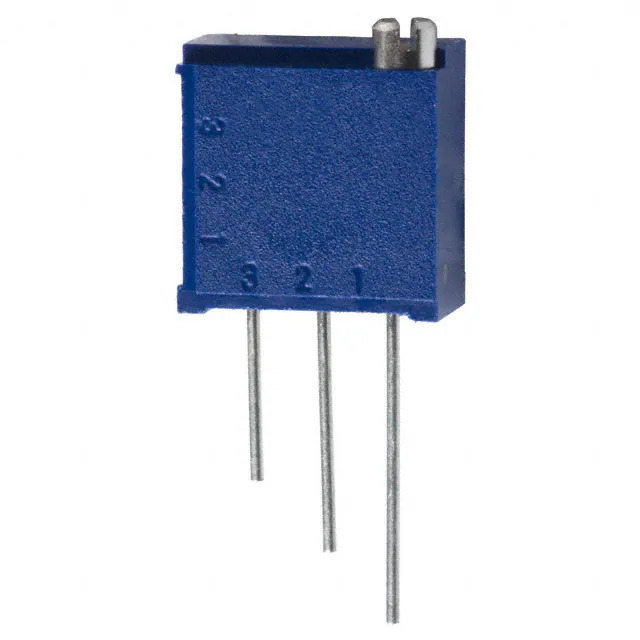

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Nidec Components Corporation
Series CT94
Package Bulk
Product Status Active
Resistance 500 Ohms
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 18
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Through Hole
Termination Style PC Pins
Size / Dimension Rectangular - 0.378" x 0.189" Face (9.60mm x 4.80mm)
Base Product Number CT94EW
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1375101-CT-94EW501
Ultra Librarian 3D Model Ultra Librarian CT-94EW501 CAD Model

Description

The CT94EW-500 is a rectangular trimmer potentiometer manufactured by Nidec Components Corporation.

  • Mounting Type: Through-Hole
  • Tolerance: ±10%
  • Size/Dimension: 0.378" x 0.189" (9.60mm x 4.80mm)
  • Resistance: 500 Ohms
  • Power Rating: 0.5W (1/2W)
  • Termination: PC Pins
  • Adjustment: Top Adjustment
  • Resistive Material: Cermet
  • Applications: Audio equipment, industrial controls, and telecommunications
  • Adjustment: 18 Turns
  • Status: Active
  • Series: CT94
  • Packaging: Bulk
  • REACH: Unaffected
  • ECCN: EAR99
