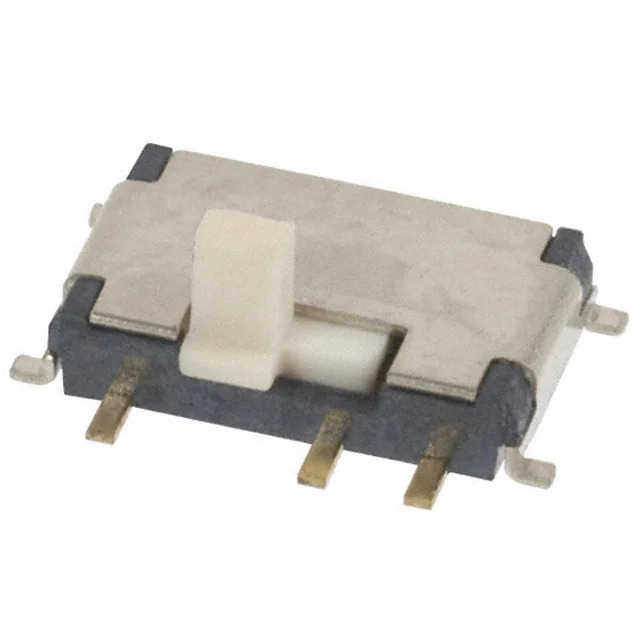

CUS-22TB Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CUS-22TB

Part No CUS-22TB
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 4V
Datasheet
CUS-22TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CUS
Package Tape & Reel
Product Status Active
Circuit DPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 4 V
Actuator Type Standard
Actuator Length 1.50mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Surface Mount
Termination Style Gull Wing
Features -
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 1.50mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 204gf
Base Product Number CUS-22T
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376214-CUS-22TB
Ultra Librarian 3D Model Ultra Librarian CUS-22TB CAD Model

Description

The Nidec Components Corporation CUS-22TB is a surface mount slide switch with a DPDT circuit configuration.

  • Voltage Rating: 4V DC
  • Current Rating: 300mA
  • Switch Function: On-On
  • Contact Finish: Gold
  • Actuator Type: Standard
  • Termination Style: Gull Wing
  • Mechanical Life: 10,000 Cycles
  • Operating Force: 204gf
  • Temperature Range: -20°C to 70°C
  • Packaging: Tape and Reel
