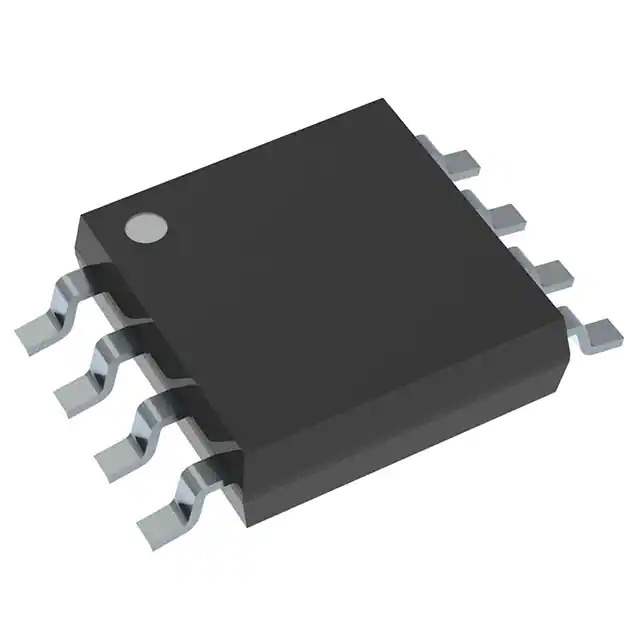

NJM2360M-TE1 Real Image
Same model may have multiple batches, images only for reference.

NJM2360M-TE1

Part No NJM2360M-TE1
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG DC/DC CONVERTER 8DMP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - DC DC Switching Regulators
Mfr Nisshinbo Micro Devices Inc.
Package Tape & Reel
Product Status Obsolete
Function Step-Up, Step-Down
Output Configuration Positive or Negative
Topology Buck, Boost
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 40V
Voltage - Output (Min/Fixed) 1.25V
Voltage - Output (Max) 40V
Current - Output 1.5A (Switch)
Frequency - Switching 100Hz ~ 100kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.197", 5.00mm Width)
Supplier Device Package 8-DMP
Base Product Number NJM2360
Standard Package 2,000 pcs
ECCN OBSOLETE
Win Source Part Number 254241-NJM2360M-TE1
Ultra Librarian 3D Model Ultra Librarian NJM2360M-TE1 CAD Model

Description

The NJM2360M-TE1 is a DC-DC switching regulator designed for power management applications.

  • Functions: step-up and step-down
  • Input Voltage Range: 2.5V to 40V
  • Maximum Output Voltage: 40V
  • Current Output: 1.5A
  • Output Configuration: positive or negative
  • Operating Temperature: -40°C to 85°C
  • Mounting: surface mountable
  • Status: obsolete
  • Manufacturer: Nisshinbo Micro Devices Inc.
