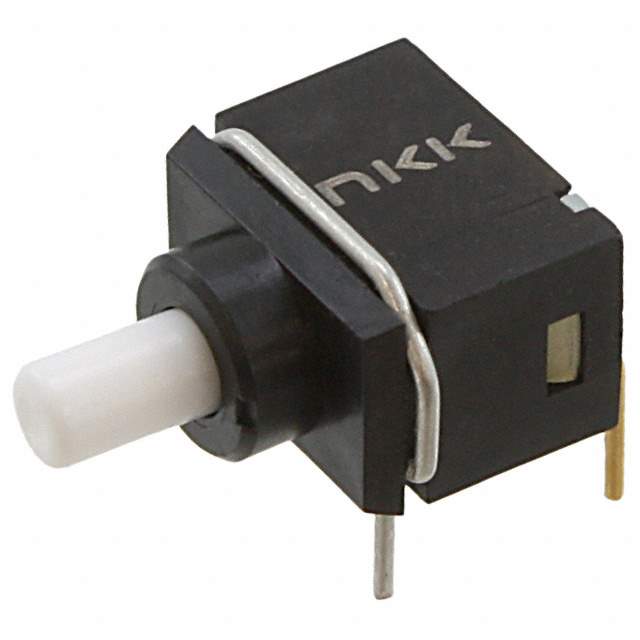

GB15AH Real Image
Same model may have multiple batches, images only for reference.

GB15AH

Part No GB15AH
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 28V / Pushbutton Switch SPDT Standard Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr NKK Switches
Series GB
Package Tray
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Other Names GB15AH,360-2795,-GB15AH,GB15AH-RO,GB15AH-RO
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1233286-GB15AH
Ultra Librarian 3D Model Ultra Librarian GB15AH CAD Model

Description

The GB15AH pushbutton switch from NKK Switches is a SPDT switch with an On-Mom switch function.

  • Voltage Rating: 28 V AC/DC
  • Current Rating: 0.4 VA (AC/DC)
  • Actuator Type: Plunger for cap
  • Actuator/Cap Color: White
  • Mounting: Through hole, right angle mounting
  • Actuator Marking: No actuator marking
  • Operating Temperature: -30°C to 85°C
  • Electrical Life: 50,000 cycles
  • ECCN: EAR99
  • REACH: Unaffected by REACH
