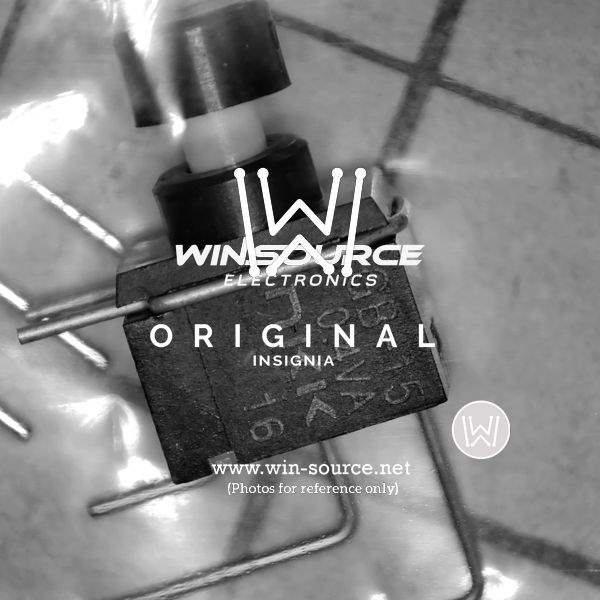

GB15AV-XA NKK Switches GB15AV-XA Real Image
Same model may have multiple batches, images only for reference.
GB15AV-XA NKK Switches GB15AV-XA Real Image
GB15AV-XA NKK Switches GB15AV-XA Real Image
Same model may have multiple batches, images only for reference.

GB15AV-XA

Part No GB15AV-XA
Manufacturer NKK Switches
Catalog Pushbutton Switches
Description Process Sealed Ultra-Miniature Pushbuttons | SWITCH PUSH SPDT 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Packaging Tray
Mounting Style Through Hole, Right Angle, Vertical
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28V
Voltage Rating - DC 28V
Actuator Type Round, Button
Color - Actuator/Cap Black
Termination Style PC Pin
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life 50,000 Cycles
Electrical Life 50,000 Cycles
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1176878-GB15AV-XA
Manufacturer Homepage www.nkkswitches.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GB15AV-XA CAD Model

Description

The GB15AV-XA is an electronic component manufactured by NKK Switches.

  • Circuit: SPDT
  • Switch Function: on-mom
  • Actuator Type: round, button
  • Voltage Rating: 28VAC and 28VDC
  • Mounting Style: through-hole, right angle, and vertical
