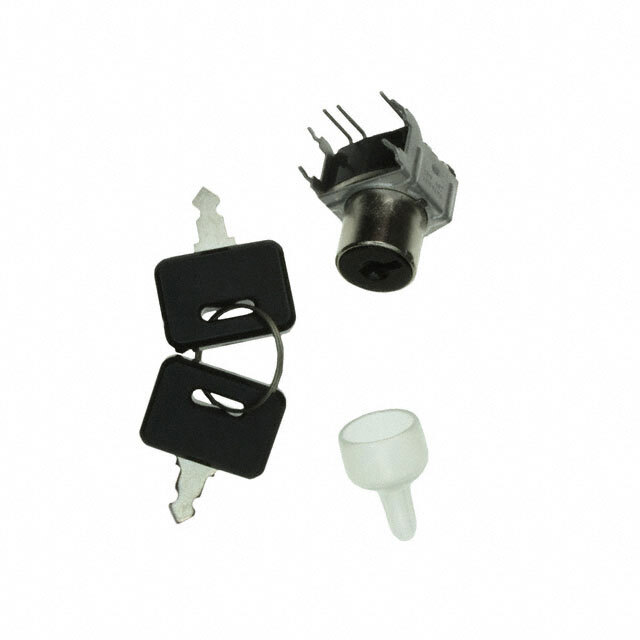

SK15AEG13

Part No SK15AEG13
Manufacturer NKK Switches
Catalog Keylock Switches
Description SWITCH KEYLK 5POS SP5T 0.4VA 28V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SP5T
Number of Positions 5
Switch Function On-On-On-On-On
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 28 V
Voltage Rating - DC 28 V
Actuator Type Tubular Key
Key Removable Positions All
Angle of Throw 45°
Contact Material Beryllium Copper
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Antistatic, Process Sealed
Temperature Range - Operating -25°C ~ 70°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1555103-SK15AEG13
Ultra Librarian 3D Model Ultra Librarian SK15AEG13 CAD Model
