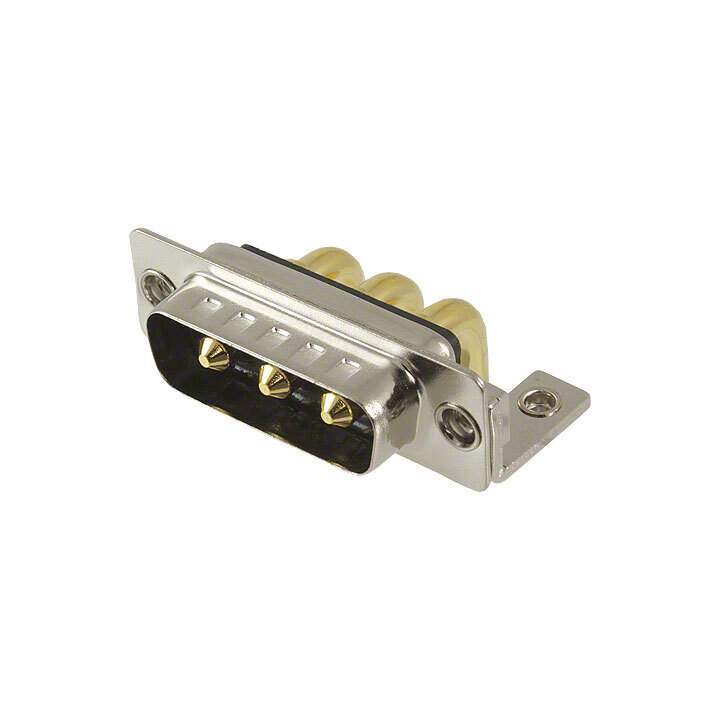

684S3W3103L461 Real Image
Same model may have multiple batches, images only for reference.

684S3W3103L461

Part No 684S3W3103L461
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 3POS R/A SLDR / 3 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Datasheet
684S3W3103L461 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Seal-D 684S
Package Tray
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 3 (Power)
Number of Rows 1
Mounting Type Board Edge, Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A) - 3W3
Contact Type Power
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 40A
Backset Spacing 0.520" (13.20mm)
Features Board Lock, Grounding Indents, Mounting Brackets
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 155°C
Base Product Number 684S3W3
Standard Package 70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339677-684S3W3103L461
Ultra Librarian 3D Model Ultra Librarian 684S3W3103L461 CAD Model

Description

The NorComp Seal-D 684S series D-sub connector assembly is designed for power applications.

  • Application: Power
  • Number of Power Positions: 3
  • Connector Type: Plug
  • Contact Type: Male Pins
  • Shell Size: 2 (DA, A) - 3W3
  • Flange Feature: Housing/Shell (4-40)
  • Shell Material: Steel (Nickel Plating)
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Ingress Protection: IP67 (Dust-Tight and Waterproof)
  • Current Rating: 40A
  • Temperature Range: -55°C to 155°C
  • Contact Finish: Gold
  • Contact Form: Machined
  • Packaging: Tray
  • Manufacturer: NorComp Inc.
