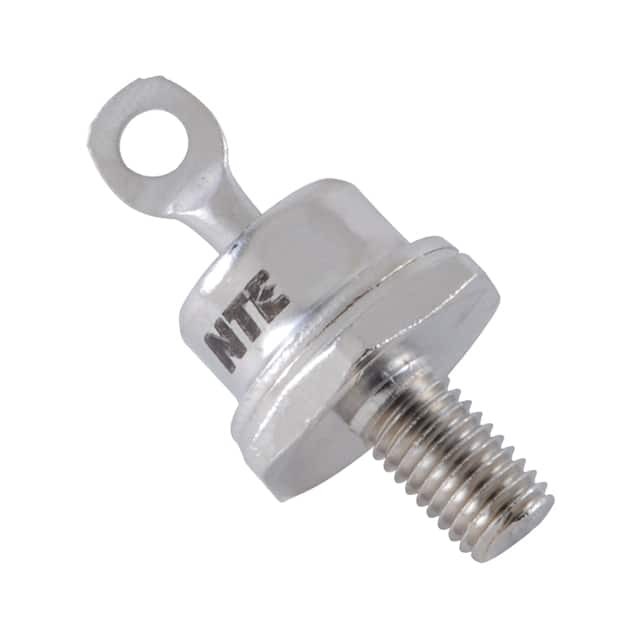

NTE6071 NTE
Same model may have multiple batches, images only for reference.

NTE6071

Part No NTE6071
Manufacturer NTE
Catalog Diodes, Rectifiers - Single
Description R-1600V 85A ANODE CASE  /  Diode Standard 1600 V 85A Stud Mount DO-5
Datasheet
NTE6071 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr NTE Electronics, Inc
Package Bag
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1600 V
Current - Average Rectified (Io) 85A
Voltage - Forward (Vf) (Max) @ If 1.15 V @ 200 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2 mA @ 1600 V
Mounting Type Stud Mount
Package / Case DO-203AA, DO-5, Stud
Supplier Device Package DO-5
Operating Temperature - Junction -65°C ~ 190°C
ECCN EAR99
HTSUS 8541.30.0080
Other Names 2368-NTE6071
Standard Package 1
Win Source Part Number 1160537-NTE6071
Ultra Librarian 3D Model Ultra Librarian NTE6071 CAD Model

Description

The NTE6071 is a standard diode with a voltage rating of 1600 V and a current rating of 85A.

  • Voltage Rating: 1600 V
  • Current Rating: 85A
  • Forward Voltage: 1.15 V @ 200 A
  • Reverse Leakage Current: 2 mA @ 1600 V
  • Package: DO-203AA, DO-5, Stud
  • Temperature Range: -65°C to 190°C
  • Application: rectifying applications
