The 74HC4515N is a high-performance integrated circuit manufactured by NXP Semiconductors, designed to function as a 4-to-16 line decoder or demultiplexer. This versatile component is a part of the 74HC (High-Speed CMOS) family, known for its robust performance and compatibility with TTL (Transistor-Transistor Logic) levels.

Key Features

• Wide Supply Voltage Range: The 74HC4515N operates on a wide supply voltage range from 2 V to 6 V, making it suitable for various applications and compatible with other logic families.
• Low Power Consumption: Its CMOS technology ensures low power dissipation, which is critical for battery-powered and energy-efficient designs.
• High Noise Immunity: The device boasts excellent noise immunity characteristics, a hallmark of the CMOS technology, ensuring reliable operation even in electrically noisy environments.
• High-Speed Operation: It offers high-speed performance, with typical propagation delay times significantly lower than those of conventional CMOS devices.
• Multiple Output Options: The 74HC4515N provides 16 output lines, which can be controlled by 4 input lines, making it an ideal choice for applications requiring multiple output control from a limited set of inputs.
• Latch Storage Capability: It includes a latch enable (LE) input that allows the latches to store a specific input setup.
• Output Enable (OE) Feature: The device features an active LOW Output Enable (OE) input, which, when LOW, enables the outputs, and when HIGH, disables the outputs, effectively placing them in a high-impedance state.

Applications

The 74HC4515N is widely used in various digital applications, including:

• Data multiplexing
• Signal decoding
• Address decoding for memory and port mapping
• Function selection in microprocessor systems

Package and Quality

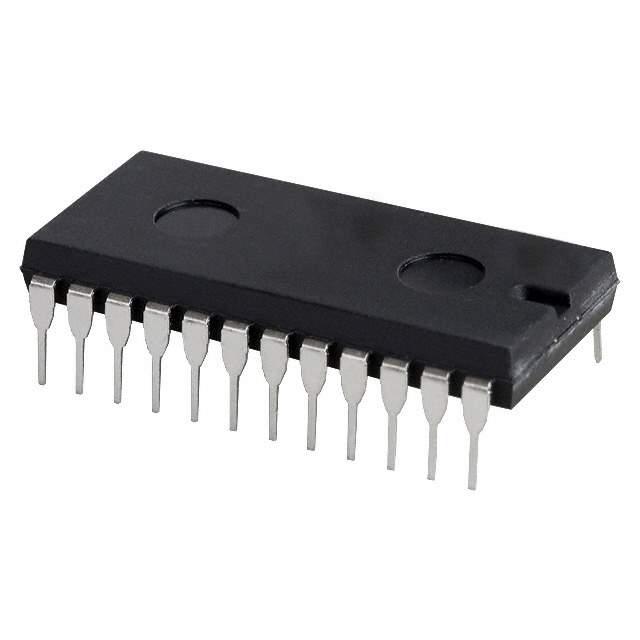

The device is available in a standard 24-pin DIP (Dual In-line Package), making it easy to handle and integrate into printed circuit boards. NXP's commitment to quality ensures that each 74HC4515N meets rigorous standards, providing reliable and consistent performance for industrial and commercial applications.
