Product Overview: 74LVCH162245ADL112

The 74LVCH162245ADL112 is a high-performance, low-voltage 16-bit transceiver from NXP Semiconductors, designed with the purpose of providing bidirectional level shifting and interfacing between different voltage domains. This integrated circuit (IC) is part of NXP's advanced 74LVCH family, which is known for its low-voltage operation and high-speed interface technology.

Key Features

• Voltage Level Shifting: The device supports 1.8V to 5.5V on the A side and 2.7V to 5.5V on the B side, allowing for seamless communication between different logic levels.
• High-Speed Operation: It is capable of facilitating data transfer at high speeds, making it suitable for high-performance computing and communication applications.
• Bus Hold Function: The bus hold feature prevents floating inputs, which can lead to undefined logic levels and increased power consumption.
• Low Power Consumption: With its low-voltage operation, the 74LVCH162245ADL112 is optimized for low power consumption, contributing to energy-efficient designs.
• Multiple Power Supply Options: The device can be powered by multiple supply voltages, offering flexibility in various application designs.
• Robust ESD Protection: The transceiver includes ESD protection circuitry, safeguarding the device against electrostatic discharge events.

Applications

The 74LVCH162245ADL112 is particularly well-suited for applications where interfacing between different voltage domains is required. It is commonly used in:

• Data communication systems
• Telecommunications
• Servers and networking equipment
• Consumer electronics
• Embedded systems

Package and Quality

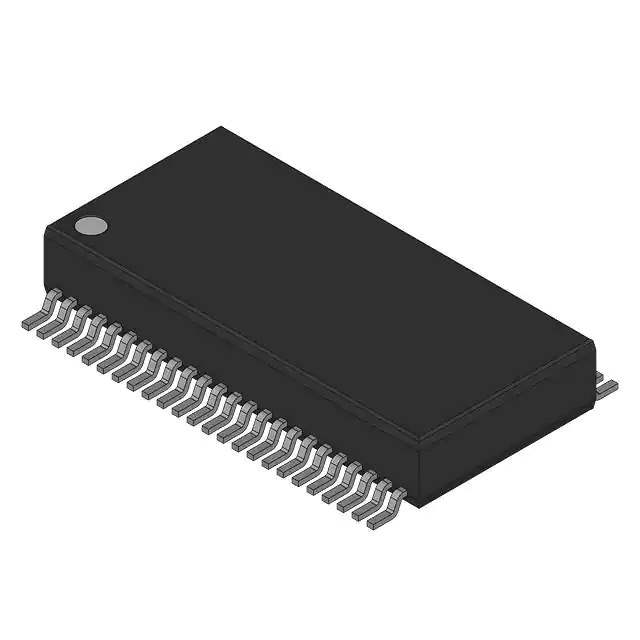

The device is offered in a 48-pin TSSOP (Thin Shrink Small Outline Package) which is designed for space-saving on printed circuit boards. NXP's commitment to quality ensures that the 74LVCH162245ADL112 meets stringent industry standards for performance and reliability.

In summary, the 74LVCH162245ADL112 from NXP is a versatile, high-speed transceiver that provides reliable level shifting capabilities for multi-voltage systems. Its low power consumption, robust protection features, and flexible packaging make it an excellent choice for designers looking to create efficient and durable electronic products.
