NXP BT138X-800F Triac

The NXP BT138X-800F is a high-performance Triac designed to control AC power in a variety of applications. This semiconductor device is a member of the thyristor family and is widely used for controlling current flow in both directions. The BT138X-800F is capable of switching high power and is suitable for operations in modes I, II, and III.

This Triac is designed to handle a maximum current of 12A and has a peak repetitive off-state voltage (VDRM) of 800V, making it suitable for use in applications requiring high voltage and current handling capabilities. It is particularly useful for the control of large AC loads such as motors, heaters, and lighting systems.

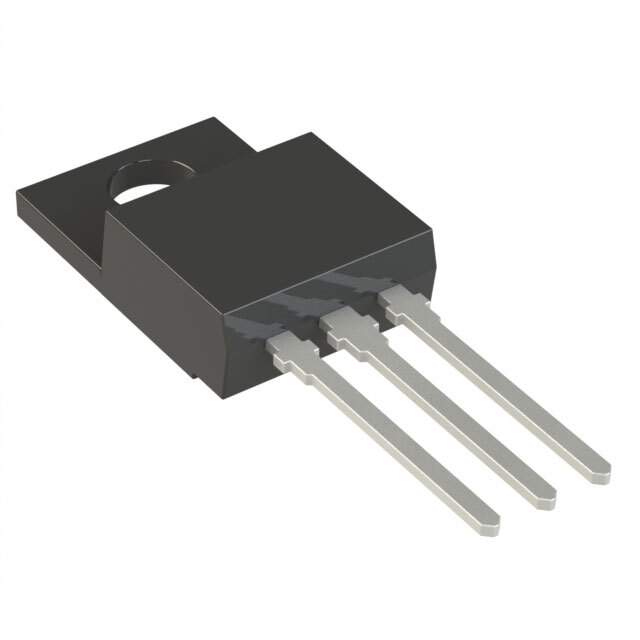

The BT138X-800F comes in a robust and compact SOT186A package, which is optimized for high thermal performance. The package design ensures that the device can withstand high operating temperatures and provides reliable performance in harsh environments.

Key Features:

• Maximum current handling capability of 12A
• Peak repetitive off-state voltage (VDRM) of 800V
• High static dV/dt capability
• High thermal cycling performance
• Gate trigger voltage (VGT) of 1.5V, which enables low power drive circuits
• Sensitive gate for easy triggering
• Three-quadrant operation capability
• Isolated mounting tab for easy installation and thermal management

The device's high static dV/dt capability ensures stable operation during sudden voltage transients, which is critical for applications that may experience surges or noise. Additionally, its sensitive gate allows for easy triggering with low power gate drive sources, making it a versatile choice for various control circuits.

Applications for the NXP BT138X-800F Triac are diverse and include motor control, industrial and domestic lighting, heating regulation, and general-purpose AC switching. Its reliability and performance make it an excellent choice for designers looking for a robust solution to manage AC power efficiently and safely.

Overall, the NXP BT138X-800F Triac is a durable and dependable component that provides precise control over AC power, enabling more efficient and innovative designs in power management systems.
