Products specifications

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr NXP USA Inc.
Series LPC43xx
Package Bulk
Core Processor ARM® Cortex®-M4/M0
Core Size 32-Bit Dual-Core
Speed 204MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, MMC/SD, QEI, SPI, SSI, SSP, UART/USART, USB, USB OTG
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 49
Program Memory Size 1MB (1M x 8)
Program Memory Type FLASH
EEPROM Size 16K x 8
RAM Size 154K x 8
Voltage - Supply (Vcc/Vdd) 2.4V ~ 3.6V
Data Converters A/D 16x10b; D/A 1x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Surface Mount

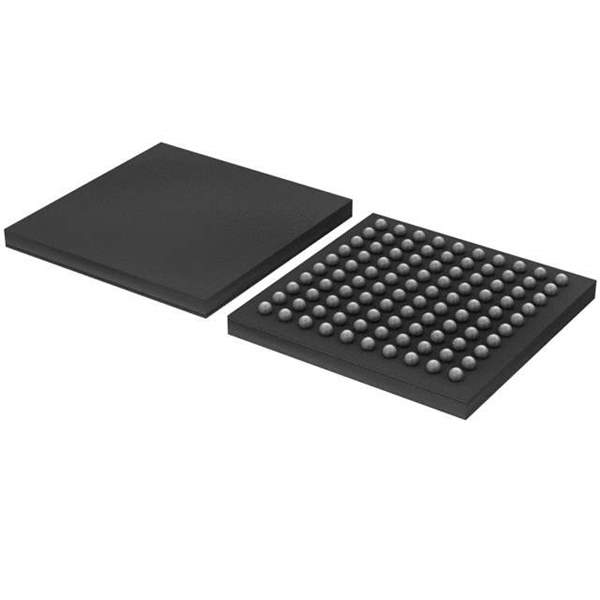

Package / Case 100-TFBGA
Supplier Device Package 100-TFBGA (9x9)
Base Product Number LPC4367
Standard Package 260
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1351694-LPC4367JET100E
Ultra Librarian 3D Model Ultra Librarian LPC4367JET100E CAD Model

Description

The NXP LPC4367JET100E is a high-performance, dual-core microcontroller that is part of NXP's LPC4300 series. Designed to offer an optimal balance between processing power, power consumption, and peripheral integration, this microcontroller is an excellent choice for a wide range of industrial, consumer, and computing applications.

Key Features

  • Dual-Core System: This microcontroller features an asymmetric dual-core architecture with an ARM Cortex-M4F and a Cortex-M0 processor. The Cortex-M4F core runs at up to 204 MHz, offering powerful computation and signal processing capabilities, while the Cortex-M0 co-processor handles peripheral events and I/O handling for increased efficiency.
  • Memory: It comes with 1 MB of flash memory and 136 KB of on-chip SRAM, which provides ample space for complex applications and software stacks.
  • Advanced Peripherals: The LPC4367JET100E includes a rich set of peripherals, such as high-speed USB, Ethernet, LCD, an external memory controller, and multiple digital and analog interfaces, allowing for versatile system designs.
  • State-of-the-Art Security: Security features include hardware AES encryption/decryption, a random number generator, and a unique device serial number for secure device authentication.
  • Package: The microcontroller is offered in a compact 100-pin LQFP package, which is ideal for space-constrained applications.

Applications

The LPC4367JET100E is designed to meet the needs of complex applications requiring a mix of data processing, real-time performance, and connectivity. It is well-suited for:

  • Industrial automation and control systems
  • Robotics and drones
  • Audio and voice processing
  • Automotive electronics
  • Networking and communication devices
  • Medical devices and healthcare systems

With its robust architecture, extensive integration, and advanced features, the NXP LPC4367JET100E microcontroller provides a flexible and powerful platform for designers looking to push the boundaries of innovation in embedded systems.
