Products specifications

Category Integrated Circuits (ICs) - Interface - Specialized
Mfr NXP
Package Tube
Product Status Obsolete
Applications Switch Monitoring
Interface SPI Serial
Voltage - Supply 3.1V ~ 5.25V
Package / Case 32-BSSOP (0.295", 7.50mm Width)
Supplier Device Package 32-SOIC
Mounting Type Surface Mount
Base Product Number MC339
Standard Package 42 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 883415-MC33972EW
Ultra Librarian 3D Model Ultra Librarian MC33972EW CAD Model

Description

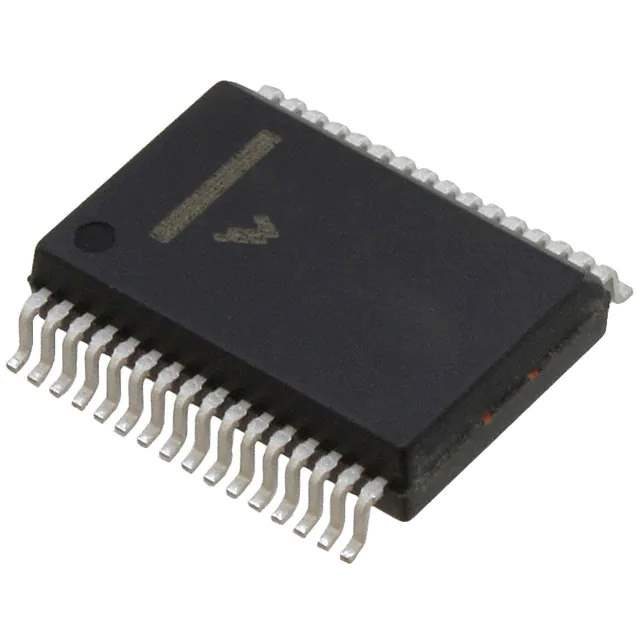

Introducing the MC33972EW Multiple Switch Detection Interface from NXP

The MC33972EW by NXP Semiconductors is a sophisticated switch detection interface designed to monitor the status of multiple switches within automotive and industrial applications. This robust component is capable of interfacing directly with the vehicle's microcontroller, providing a reliable and efficient means of detecting switch states in a variety of systems.

The MC33972EW is part of NXP's family of switch detection devices and offers an array of features that make it an ideal choice for designers looking to improve system reliability and simplify design complexity. This device is capable of interfacing up to 22 switch contacts, providing a high level of integration and reducing the need for multiple discrete components.

Key Features:

  • Multiple Switch Inputs: Capable of monitoring up to 22 switches, including a mix of grounded and floating inputs.
  • Enhanced Diagnostics: Integrated diagnostics functionality helps detect switch open and short conditions, enhancing system reliability.
  • Wet/Dry Configuration: The device supports both wetting current and non-wetting current configurations to accommodate various types of switches and system requirements.
  • Serial Peripheral Interface (SPI): The SPI bus allows for easy communication with the host microcontroller, enabling efficient data transfer and system control.
  • Voltage Range: Designed to operate within a wide voltage range, ensuring compatibility with a broad range of automotive applications.
  • Temperature Range: The device is engineered to perform reliably across extreme temperature ranges, which is critical for harsh automotive environments.

The MC33972EW is encased in a robust package that protects against environmental factors such as temperature and vibration, ensuring long-term durability and consistent performance. Its compact size allows for flexible PCB layout and integration into space-constrained applications.

Whether you're designing an automotive body control module, an industrial control system, or any application requiring multiple switch monitoring, the MC33972EW from NXP provides a versatile and reliable solution. With its advanced features and proven performance, this switch detection interface is poised to enhance the functionality and efficiency of your next project.
