Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer NXP
Series MPC5xx
Packaging Tray
Core Processor PowerPC
Core Size 32-Bit
Speed 56MHz
Connectivity CAN, EBI/EMI, SCI, SPI, UART/USART
Peripherals POR, PWM, WDT
Number of I/O 56
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
RAM Size 32K x 8
Supply Voltage 2.5 V ~ 2.7 V
Data Converters A/D 32x10b
Oscillator Type External
Operating Temperature Range -40°C ~ 125°C (TA)
Package 388-BBGA
Manufacturer Package 388-PBGA (27x27)
Win Source Part Number 789223-MPC563MVR56
Popularity Medium
Supply and Demand Status Limited
Family Name MPC563
Introduction Date September 07, 2005
ECCN 3A991.a.2
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian MPC563MVR56 CAD Model

Description

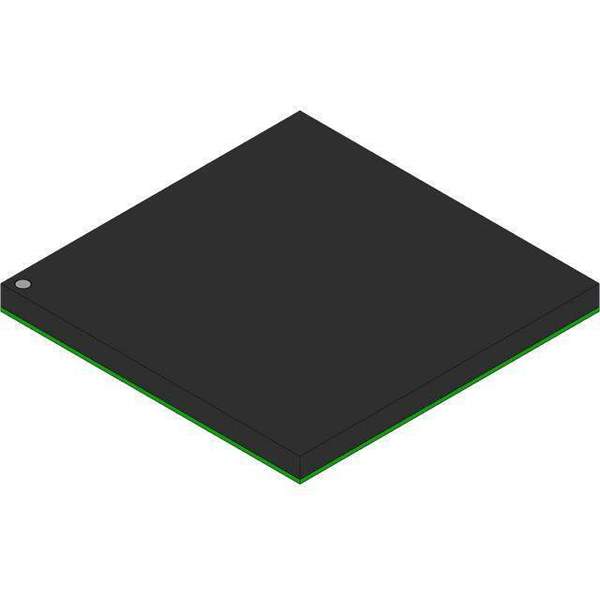

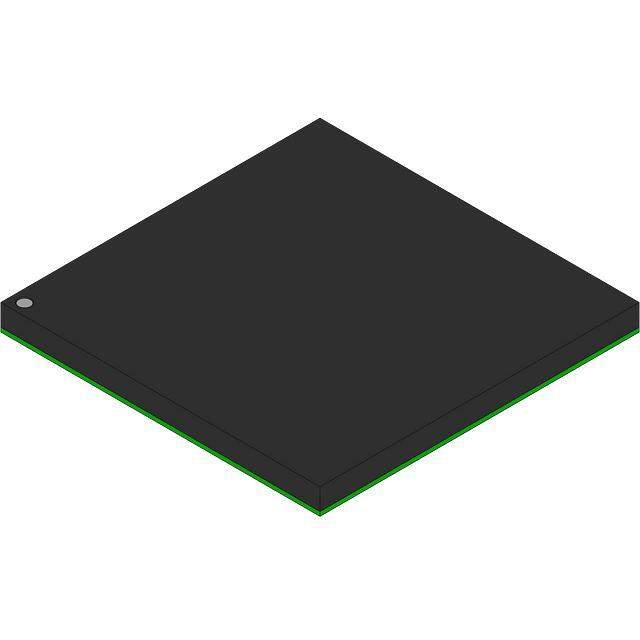

NXP MPC563MVR56 Microcontroller

The NXP MPC563MVR56 is a robust, high-performance microcontroller designed to cater to the demanding requirements of automotive and industrial applications. This microcontroller is part of NXP's MPC560xP family, renowned for their exceptional processing power, advanced features, and reliability in critical systems.

Key Features:

  • Core: The heart of the MPC563MVR56 is a 32-bit Power Architecture® core that operates at a frequency of up to 56 MHz, providing a perfect balance between processing capability and power consumption.
  • Memory: It comes equipped with a generous memory model, featuring 768 KB of flash memory for program storage and 36 KB of RAM for efficient data handling, ensuring ample space for complex applications and software stacks.
  • Advanced Timer: The microcontroller includes a Modular I/O System (MIOS) that supports complex timing and control operations, making it ideal for engine management and automotive control systems.
  • Communication Interfaces: A wide array of communication interfaces such as CAN, LIN, SPI, and I2C are embedded within, enabling seamless connectivity and integration with other components and peripheral devices.
  • Analog-to-Digital Converters: With multiple channels of high-resolution ADCs, the MPC563MVR56 provides accurate and rapid conversion of analog signals to digital, essential for sensor data processing and real-time decision-making.
  • Enhanced Safety Features: Safety is a paramount concern in its design, with features like Error Correction Code (ECC) on both RAM and flash, and a built-in self-test capability for detecting and responding to system faults.
  • Temperature Range: The device is built to withstand extreme temperature ranges, making it suitable for harsh environments often encountered in automotive and industrial settings.

Applications:

The MPC563MVR56's combination of performance, memory capacity, and robust peripheral set makes it an excellent choice for a wide range of applications, including engine control units, transmission control modules, body control modules, industrial control systems, and various other embedded control applications.

With its focus on reliability and high-speed processing, the NXP MPC563MVR56 stands as a powerful solution for developers looking to create sophisticated and durable systems in the automotive and industrial sectors.
