Product Overview: NXP MPXH6300A6U Pressure Sensor

The NXP MPXH6300A6U is a high-quality, integrated pressure sensor designed for a wide range of applications that require precise pressure measurement within the 300 to 1100 kPa range. This sensor is part of NXP's MPX series, known for their reliability and performance in harsh environments.

Key Features

• Pressure Range: The MPXH6300A6U operates over a pressure range of 300 to 1100 kPa, making it suitable for various industrial, automotive, and consumer applications.
• Accuracy: It offers high accuracy and linearity with a total error band typically within ±2.5% over the 0°C to 85°C temperature range.
• Temperature Compensated: This sensor includes temperature compensation for changes in temperature, ensuring stable readings across its operating temperature range.
• Calibrated: The MPXH6300A6U comes fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and accuracy.

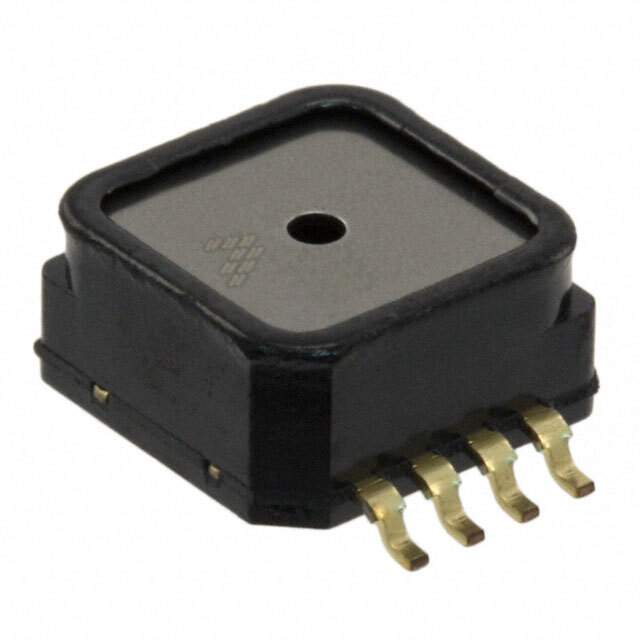

• Package: It is available in a small outline package (SOP) with a high-temperature thermoplastic case, suitable for PCB mounting and robust enough for demanding environments.
• Supply Voltage: The sensor operates at a 5V DC supply voltage, with a low supply voltage sensitivity.
• Output: It provides an analog output that is directly proportional to the applied pressure.

Applications

The MPXH6300A6U is versatile and can be used in various applications such as:

• Automotive engine control systems
• Industrial process control
• Medical devices
• Pneumatic control systems
• Air conditioning systems

Quality and Reliability

NXP is known for its commitment to quality, and the MPXH6300A6U is no exception. It is designed to meet or exceed the stringent requirements of the automotive industry, making it a reliable choice for safety-critical applications.

Whether you are developing a sophisticated industrial system or an advanced automotive solution, the NXP MPXH6300A6U offers the performance and durability needed to deliver accurate and reliable pressure measurements.
