Same model may have multiple batches, images only for reference.

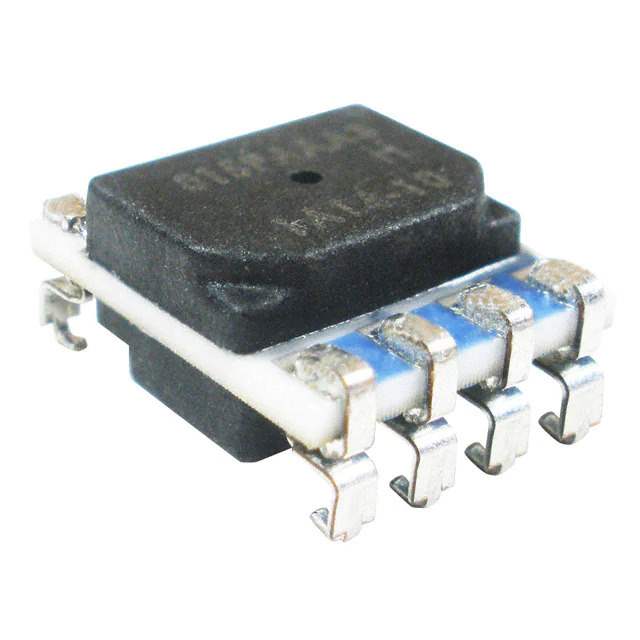

SSCMNNN001PG2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCMNNN001PG2A3

Part No SSCMNNN001PG2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 1PSIG 12BIT 8SMT
Datasheet
SSCMNNN001PG2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell
Series TruStability® SSC
Package Bulk
Product Status Discontinued
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1PSI (6.89kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 10PSI (68.95kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SMD, J-Lead
Supplier Device Package 8-SMT
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 846901-SSCMNNN001PG2A3
Ultra Librarian 3D Model Ultra Librarian SSCMNNN001PG2A3 CAD Model

Description

The 846901-SSCMNNN001PG2A3 is a pressure sensor from the TruStability® SSC series.

  • Mounting Type: Board Mount
  • Output: Amplified Output, Temperature Compensation
  • Output Type: I2C
  • Digital Output: 12-bit
  • Accuracy: ±0.25%
  • Pressure Type: Vented Gauge
  • Operating Pressure: 1PSI
  • Maximum Pressure: 10PSI
  • Voltage Supply: 3V to 3.6V
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Honeywell
