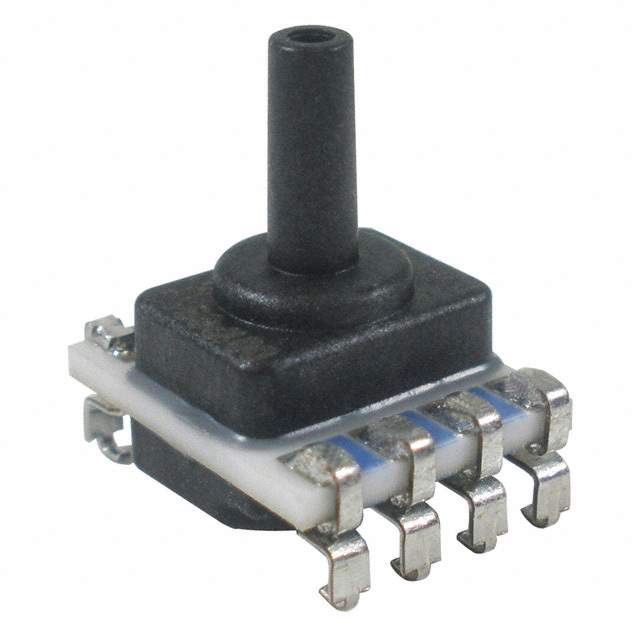

SSCMLND030PGSA5 Real Image
Same model may have multiple batches, images only for reference.

SSCMLND030PGSA5

Part No SSCMLND030PGSA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor 30PSI (206.84kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 12 b 8-SMD, J-Lead, Top Port
Datasheet
SSCMLND030PGSA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 30PSI (206.84kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.1" (2.47mm) Tube
Port Style Barbless
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 60PSI (413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead, Top Port
Supplier Device Package 8-SMT
Base Product Number SSCMLND
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234371-SSCMLND030PGSA5
Ultra Librarian 3D Model Ultra Librarian SSCMLND030PGSA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SSCMLND030PGSA5 is a vented gauge pressure sensor that operates @ 30PSI (206.84kPa) operating pressure and has a male-0.1" (2.47mm) tube port size.

  • Series: TruStability® SSC series
  • Feature: amplified output
  • Feature: temperature compensation
  • Standard Package: 20
  • Termination Style: SMD (SMT) tab
  • Output Type: SPI
  • Output: 12b
  • Output Accuracy: ±0.25%
  • Temperature Range: -40°C to 85°C
  • Voltage Supply: 4.75V to 5.25V
  • Package: 8-SMD, J-Lead, Top Port
  • MSL Level: 1 (unlimited)
