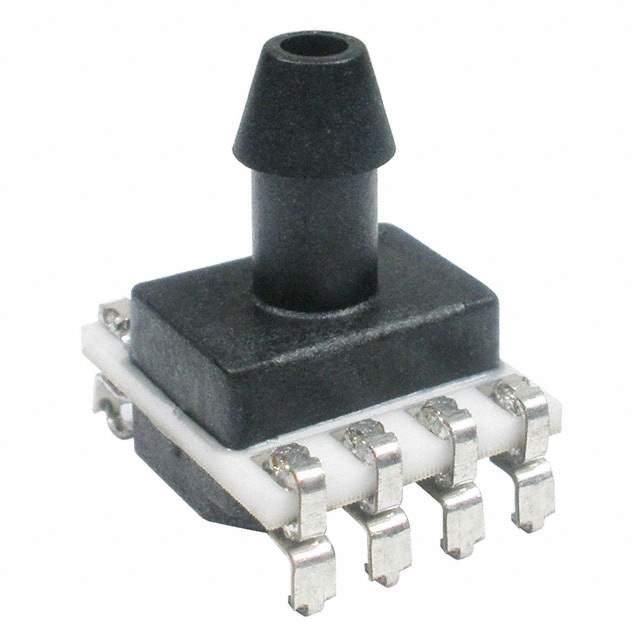

SSCMANN006BGAA3 Real Image
Same model may have multiple batches, images only for reference.

SSCMANN006BGAA3

Part No SSCMANN006BGAA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 6BAR GAUG 3.3V SMD / Pressure Sensor 87.02PSI (600kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0.33 V ~ 2.97 V 8-SMD, J-Lead, Top Port
Datasheet
SSCMANN006BGAA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 87.02PSI (600kPa)
Output Type Analog Voltage
Output 0.33 V ~ 2.97 V
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 246.56PSI (1700kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead, Top Port
Supplier Device Package 8-SMT
Base Product Number SSCMANN
Other Names 480-5520,SSCMANN006BGAA3
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234312-SSCMANN006BGAA3
Ultra Librarian 3D Model Ultra Librarian SSCMANN006BGAA3 CAD Model

Description

The Honeywell Sensing and Productivity Solutions Pressure Sensor is a part of the TruStability® SSC series that features an amplified output and is temperature compensated.

  • Port Style: top port
  • Port Size: male 0.19" (4.93mm) tube
  • Pressure Type: vented gauge
  • Operating Pressure: 87.02PSI (600kPa)
  • Maximum Pressure: 246.56PSI (1700kPa)
  • Output Type: analog voltage
  • Output: 0.33 V ~ 2.97 V
  • Accuracy: ±0.25%
  • MSL Level: 1 (Unlimited)
  • Manufacturer: Honeywell Sensing and Productivity Solutions
