Same model may have multiple batches, images only for reference.

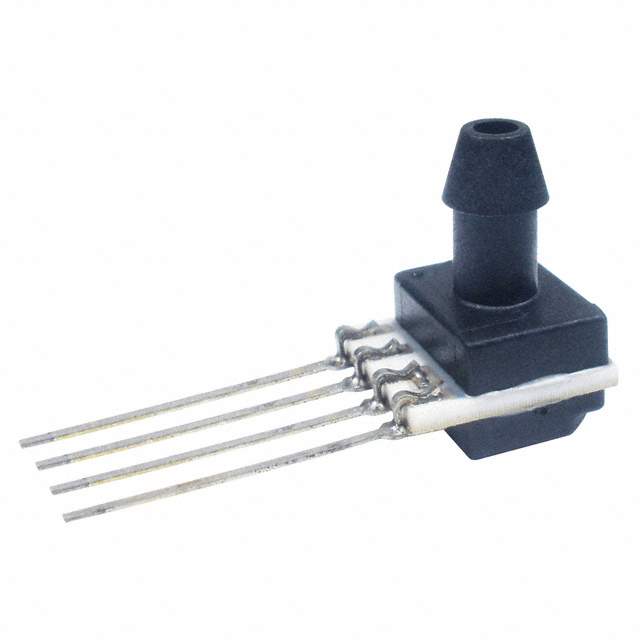

SSCSANN005PGAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSANN005PGAA5

Part No SSCSANN005PGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 5PSI GAUG 5V SIP / Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0.5 V ~ 4.5 V 4-SIP, Side Port
Datasheet
SSCSANN005PGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 5PSI (34.47kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Side Port
Supplier Device Package 4-SIP
Base Product Number SSCSANN
Other Names 480-5205,SSCSANN005PGAA5
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234346-SSCSANN005PGAA5
Ultra Librarian 3D Model Ultra Librarian SSCSANN005PGAA5 CAD Model

Description

Another pressure sensor from Honeywell Sensing and Productivity Solutions is part of the TruStability® SSC series.

  • Win Source Part Number: 1234346-SSCSANN005PGAA5
  • Application: Board Mount
  • Package: Bulk
  • Output Type: Analog Voltage
  • Output: 0.5 V to 4.5 V
  • Accuracy: ±0.25%
  • Pressure Type: Vented Gauge
  • Operating Pressure: 5PSI (34.47kPa)
  • Maximum Pressure: 30PSI (206.84kPa)
  • Voltage Supply: 4.75V to 5.25V
  • Package/Case: 4-SIP, Side Port
  • HTSUS: 9026.20.4000
