Same model may have multiple batches, images only for reference.

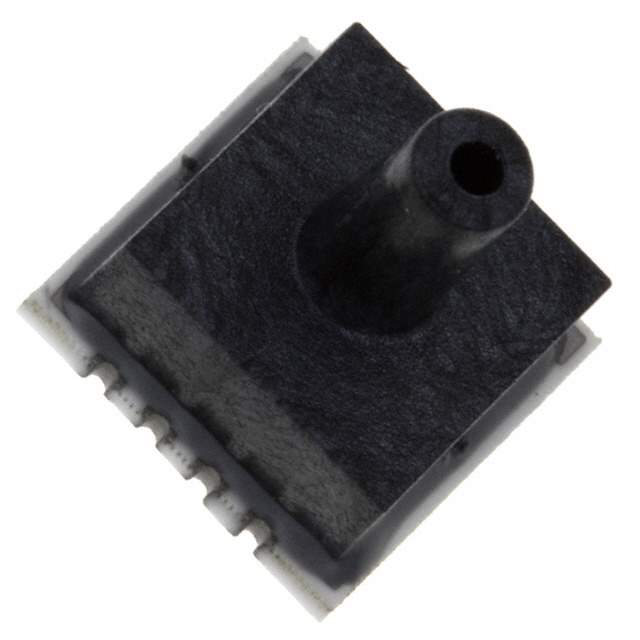

SXP100GSMTP Real Image
Same model may have multiple batches, images only for reference.

SXP100GSMTP

Part No SXP100GSMTP
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 100PSI GAUGE SMD / Pressure Sensor 100PSI (689.48kPa) Vented Gauge Male - 0.08" (2.05mm) Tube 0 mV ~ 150 mV (5V) 8-SMD Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SX SMT
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 100PSI (689.48kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 150 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Size Male - 0.08" (2.05mm) Tube
Port Style Barbless
Termination Style SMD (SMT) Tab
Maximum Pressure 150PSI (1034.21kPa)
Temperature Range - Operating -40°C ~ 125°C
Package / Case 8-SMD Module
Other Names Q8559041,480-3111
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234771-SXP100GSMTP
Ultra Librarian 3D Model Ultra Librarian SXP100GSMTP CAD Model

Description

The Honeywell Sensing and Productivity Solutions SXP100GSMTP is an obsolete electronic component designed for use in various electronic devices.

  • Pressure Type: Vented Gauge
  • Operating Pressure: 100PSI
  • Maximum Pressure: 150PSI
  • Output Type: Wheatstone Bridge
  • Output: 0mV to 150mV (5V)
  • Accuracy: ±0.5%
  • Package/Case: 8-SMD Module
