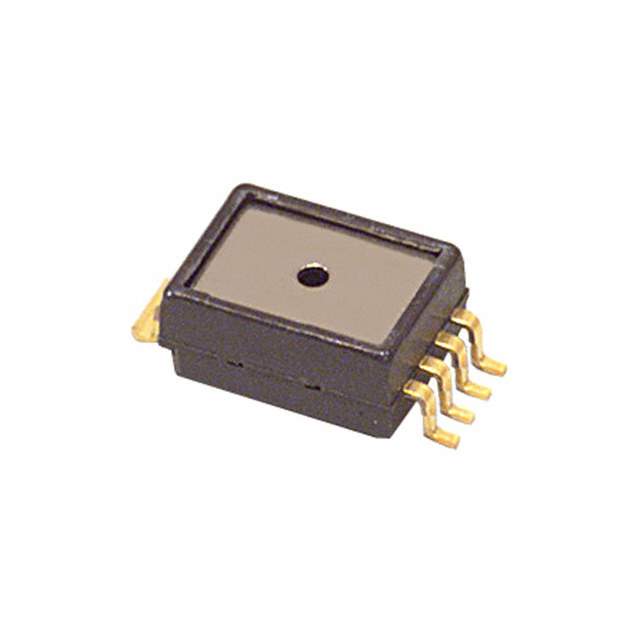

Introducing the NXP MPXM2010D Pressure Sensor

The NXP MPXM2010D is a state-of-the-art differential pressure sensor designed for a wide range of applications, including air and gas pressure sensing. This integrated silicon pressure sensor is tailored for a user-friendly experience, providing highly accurate and reliable readings for both professional and hobbyist projects.

Key Features

• Pressure Range: The MPXM2010D sensor is designed to measure differential pressures ranging from 0 to 10 kPa, making it versatile for numerous low-pressure applications.
• High Sensitivity: With an inherent sensitivity of 1.0 mV/kPa, the device ensures precise measurements, enabling users to detect even the slightest changes in pressure.
• Temperature Compensated: The sensor includes built-in temperature compensation, which guarantees consistent performance over a temperature range of -40°C to +125°C.
• Calibrated: Each MPXM2010D sensor is calibrated and tested, ensuring high accuracy and linearity straight from the factory.
• Small Form Factor: The compact size of the sensor allows for easy integration into a variety of systems without requiring significant space.

Applications

The versatility of the MPXM2010D makes it suitable for a broad spectrum of applications, including:

• Medical devices such as respiratory equipment and sleep apnea monitors.
• Environmental controls for HVAC systems, ensuring optimal air pressure and flow.
• Industrial controls, including pneumatic systems and air compressor monitoring.
• Consumer appliances that require pressure sensing for optimal operation.

Technical Specifications

The MPXM2010D sensor operates on a supply voltage of 3.0 V to 6.0 V, and it has a maximum error over 0°C to 85°C of ±0.25% Full Scale Output (FSO). The sensor is also available in a small outline package (SOP) with a dual port and a high-impedance bridge configuration, which allows for easy interfacing with most signal processing equipment.

For engineers and designers looking for a reliable and accurate pressure sensing solution, the NXP MPXM2010D offers a compelling mix of performance, durability, and ease of use. Whether for intricate medical instruments or robust industrial systems, this sensor stands ready to deliver the precision you need for your pressure measurement requirements.
