Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr NXP USA Inc.
Series QorIQ P1
Package Tray
Product Status Obsolete
Core Processor PowerPC e500v2
Number of Cores/Bus Width 1 Core, 32-Bit
Speed 1.067GHz
Co-Processors/DSP Security; SEC
RAM Controllers DDR2, DDR3
Graphics Acceleration No
Display & Interface Controllers LCD
Ethernet 10/100/1000Mbps (2)
SATA SATA 3Gbps (2)
USB USB 2.0 + PHY (2)
Temperature Range - Operating 0°C ~ 105°C (TA)
Security Features Cryptography, Random Number Generator
Mounting Type Surface Mount

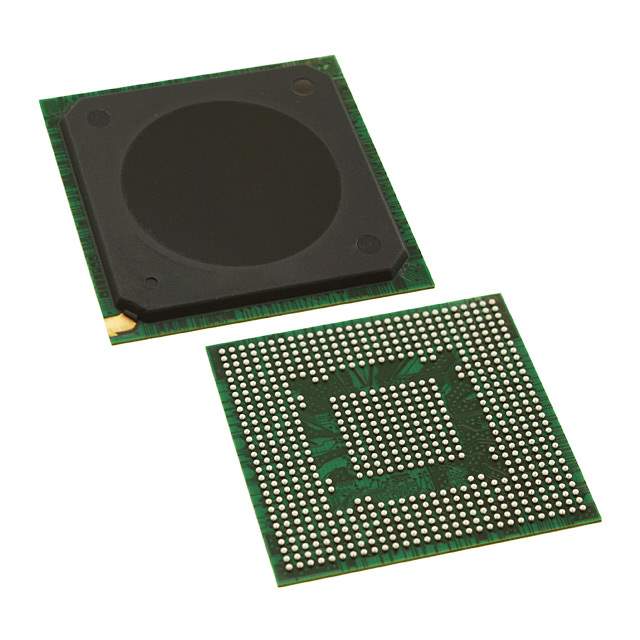

Package / Case 689-BBGA Exposed Pad
Supplier Device Package 689-TEPBGA II (31x31)
Additional Interfaces DUART, I2C, I2S, MMC/SD, SPI
Base Product Number P1013
Standard Package 27
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A002A1 FRE
HTSUS 8542.31.0001
Win Source Part Number 1346274-P1013PSE2LFA
Ultra Librarian 3D Model Ultra Librarian P1013PSE2LFA CAD Model

Description

The P1013PSE2LFA is a high-performance, power-efficient processor from NXP Semiconductors, designed to meet the demanding needs of embedded computing applications. This product is part of NXP's QorIQ P1 series, which is renowned for its exceptional integration, broad performance range, and low power consumption.

Key Features

  • Core: The P1013PSE2LFA features a single e500 core, which is based on Power Architecture technology. This core operates at speeds of up to 800MHz, delivering the computational power necessary for a variety of applications without compromising on energy efficiency.
  • Connectivity: With integrated support for multiple high-speed interfaces, this processor is well-equipped for connectivity. It includes Gigabit Ethernet controllers, PCI Express slots, USB 2.0 ports, and Serial RapidIO interfaces, making it highly versatile in different system configurations.
  • Memory Support: The device supports DDR2 and DDR3 memory with Error Correction Code (ECC) capabilities, ensuring data integrity and reliability for critical applications.
  • Security: Security is a paramount concern in today's interconnected world, and the P1013PSE2LFA addresses this with its advanced encryption features. The processor includes a security engine that supports a variety of algorithms, including AES, DES, 3DES, SHA, and RSA, to provide robust data protection.
  • Power Efficiency: Designed for power-sensitive applications, this processor implements advanced power management techniques. It can operate within a wide range of power envelopes, making it suitable for both industrial and consumer applications where energy efficiency is key.

Applications

The P1013PSE2LFA is ideal for a broad spectrum of applications, including networking equipment (such as routers and switches), industrial control systems, aerospace and defense, as well as energy management systems. Its ability to handle complex tasks with minimal power consumption also makes it suitable for portable and compact devices that require reliable performance on the go.

Conclusion

In summary, the P1013PSE2LFA from NXP stands out as a versatile and efficient processor, equipped with the necessary features to support a wide range of embedded computing tasks. Its balance of power, performance, and security makes it an excellent choice for developers looking to create sophisticated systems with stringent power and space requirements.
