ON Semiconductor FDPC8013S MOSFET Overview

The FDPC8013S is a high-performance, surface-mount PowerTrench® MOSFET designed by ON Semiconductor, a leading provider of semiconductor-based solutions. This MOSFET is specifically engineered for power conversion applications, delivering exceptional power density, efficiency, and reliability. It is an ideal choice for designers looking to optimize their power management systems across a broad range of applications.

The device features a dual N-Channel configuration with a 25V drain-to-source voltage (V<sub>DS) and a continuous drain current (I<sub>D) of 15A at 25°C. This makes the FDPC8013S a robust component for handling significant power levels in compact spaces. The low on-resistance (R<sub>DS(on)) of just 8.4 mΩ at a gate voltage of 10V ensures high efficiency, reducing power losses and improving thermal performance.

ON Semiconductor's proprietary PowerTrench technology is integrated into the FDPC8013S to provide a reduced gate charge (Q<sub>G) and lower capacitances, which translates to faster switching speeds and further efficiency gains in high-frequency applications. This technology also contributes to the device's low figure of merit (FOM), which is a measure of the efficiency and performance in power conversion applications.

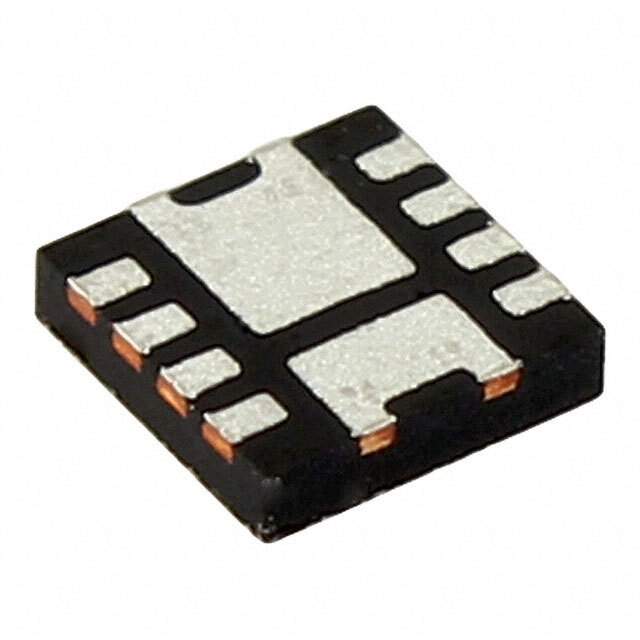

The FDPC8013S comes in a compact 5x6 mm Power56 package, which is optimized for minimal footprint and low-profile applications. This package includes a shielded and solderable die pad for improved thermal conduction and mechanical robustness. Additionally, the MOSFET is RoHS compliant and halogen-free, making it an environmentally friendly choice for manufacturers concerned with sustainability.

Whether it's for DC-DC converters, motor drives, computing, or telecommunication power supplies, the FDPC8013S from ON Semiconductor provides designers with a powerful and efficient solution that meets the demanding requirements of modern electronic systems.
