STL8DN10LF3 - N-Channel MOSFET by STMicroelectronics
The STL8DN10LF3 is a high-performance, N-channel Power MOSFET designed and manufactured by the renowned semiconductor company, STMicroelectronics. This power MOSFET is engineered to meet the demanding requirements of modern electronic circuits, providing efficient power management and switching with low on-state resistance.
With its advanced STripFET™ III technology, the STL8DN10LF3 offers one of the best-in-class on-resistance versus gate charge trade-offs, making it an ideal choice for applications that require high efficiency and power density. This technology ensures that the device operates with reduced conduction losses, enhancing overall system efficiency.

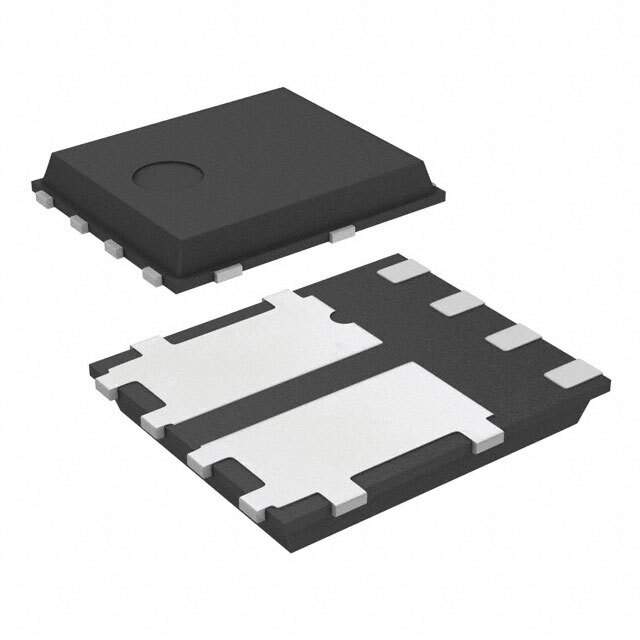

The STL8DN10LF3 comes in a compact and robust PowerFLAT™ 5x6 package, which is designed to minimize the footprint on the PCB and optimize thermal performance. The package is highly suitable for space-constrained applications while providing excellent power dissipation capabilities.
Key Features:
- Drain-source voltage (V<sub>DS): 100 V, which allows it to be used in higher voltage applications.
- Continuous drain current (I<sub>D): 80 A, providing high current handling capability for heavy-duty operations.
- Low threshold voltage (V<sub>GS(th)): This ensures that the MOSFET can be driven at lower gate voltages, reducing the power required to switch the device on and off.
- Low gate charge (Q<sub>g): This feature contributes to faster switching speeds and reduced switching losses, ideal for high-frequency applications.
- Ultra-low on-resistance (R<sub>DS(on)): Minimizes conduction losses and improves efficiency, especially important in power-saving modes.
Applications:
The STL8DN10LF3 is suitable for a wide range of applications, including:
- DC/DC converters
- Motor control circuits
- Computing and server power supplies
- Automotive applications and high-performance power management systems
In summary, the STL8DN10LF3 N-Channel MOSFET by STMicroelectronics stands out for its high efficiency, robustness, and versatility, making it an excellent choice for designers looking to optimize their power management solutions.
