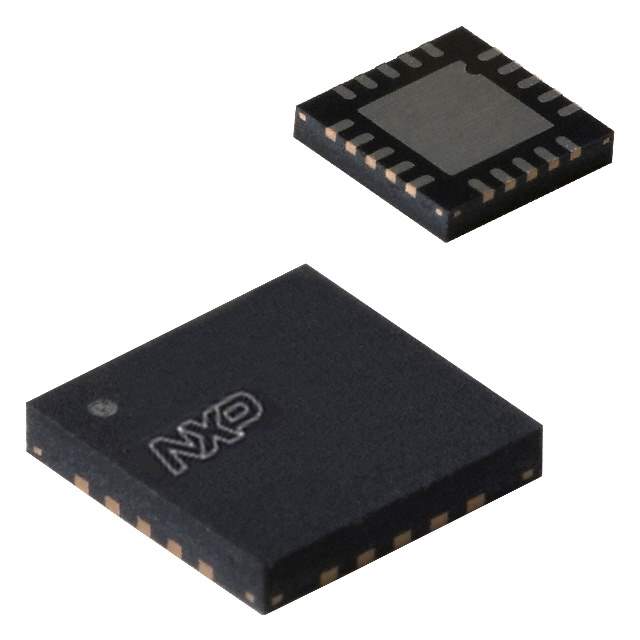

NXP PCF8583BS Clock and Calendar Chip

The NXP PCF8583BS is a versatile, low power clock and calendar chip, designed to provide a comprehensive timekeeping solution for a wide range of applications. This integrated circuit (IC) is based on a 2048-bit static CMOS RAM organized as 256 words by 8 bits, featuring a highly stable quartz-crystal-controlled oscillator that ensures accurate timing over a broad temperature range.

With its I2C-bus interface, the PCF8583BS allows for easy integration into existing systems, enabling simple communication with microcontrollers and other digital devices. This allows for the transfer of both clock and calendar data or the programming of alarm and timer functions without the need for complex wiring or additional components.

The device's built-in word address register is incremented automatically after each written or read data byte, which facilitates efficient burst access for reading or writing contiguous memory locations. This feature is particularly useful for microcontroller-based systems that require quick access to time and date information.

The PCF8583BS operates within a voltage range of 2.5V to 6V, making it suitable for both 3.3V and 5V systems. Its low power consumption ensures minimal impact on battery life, which is crucial for portable and battery-operated devices. The device also includes a programmable clock output for peripheral devices, a timer function that can generate interrupts, and an alarm function that can be set to a specific time or date, providing additional flexibility for system designers.

With its compact SO8 packaging, the PCF8583BS is designed for space-constrained applications, and its robust feature set makes it an ideal choice for use in personal organizers, handheld devices, metering systems, and other applications that require reliable timekeeping functionality.

Overall, the NXP PCF8583BS is a highly functional and reliable component that offers designers a convenient and efficient solution for incorporating time and calendar features into their electronic systems.
