Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Obsolete(EOL)
Type Video Encoder
Digital Supply Voltage 4.5 V to 5.5 V
Mounting Through Hole

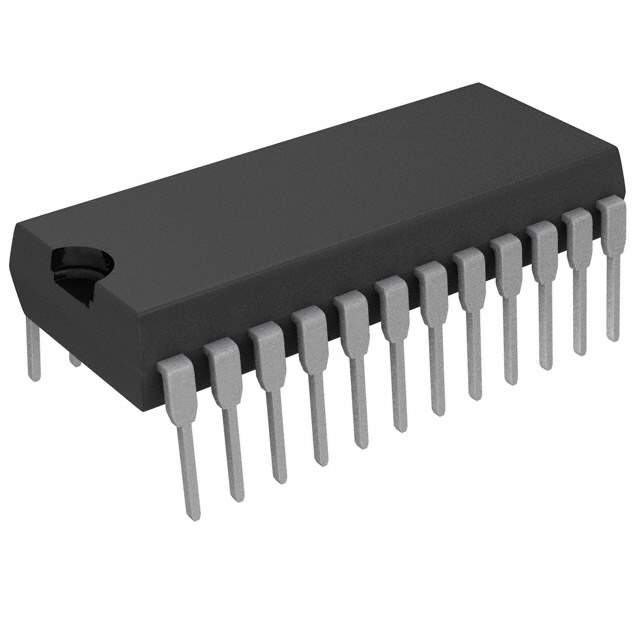

Case / Package 24-SDIP
Win Source Part Number 047955-TDA8501
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TDA8501 CAD Model

Description

The NXP TDA8501 is a cutting-edge PAL/NTSC encoder designed for high-performance video applications. This versatile IC is capable of converting digital RGB or YCrCb signals into a composite video signal, making it an ideal choice for a range of multimedia and television applications.

Key Features

  • Multi-Format Support: The TDA8501 supports both PAL and NTSC formats, ensuring compatibility with television standards in different regions.
  • Digital Input: It accepts 8-bit digital video input, which can be either RGB or YCrCb format, offering flexibility in interfacing with different video sources.
  • Color Encoding: With its advanced color encoding capabilities, the TDA8501 delivers high-quality color reproduction, enhancing the viewer's experience.
  • On-Chip Color Subcarrier Oscillator: The inclusion of an on-chip color subcarrier oscillator simplifies the design and reduces external component count.
  • Integrated Filters: Built-in filters for luminance and chrominance signals ensure clean and stable video output.

Applications

The TDA8501 is well-suited for a variety of applications, including:

  • Television sets
  • Set-top boxes
  • Video game consoles
  • Personal computers
  • Video CD and DVD players

Technical Specifications

Parameter Value Supply Voltage 5V (typical) Power Consumption Low Operating Temperature -40°C to +85°C Package QFP44

Quality and Reliability

NXP Semiconductors is known for its commitment to quality and reliability. The TDA8501 is manufactured under strict quality control procedures, ensuring that it meets the highest industry standards for performance and longevity.
