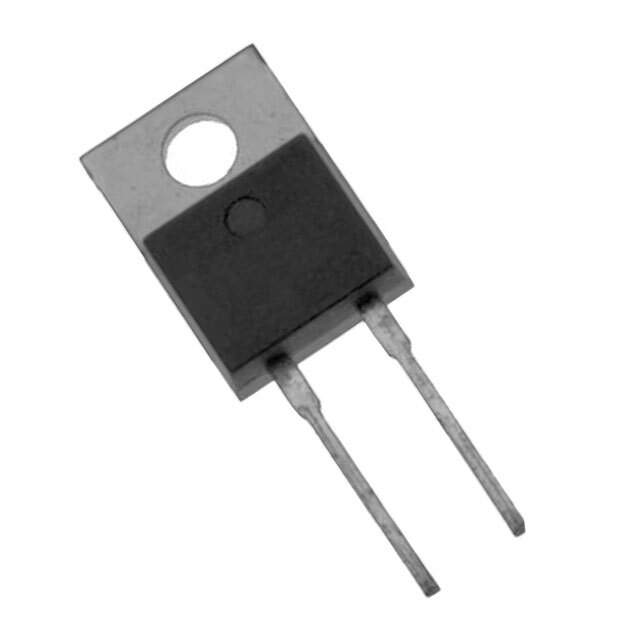

Same model may have multiple batches, images only for reference.

TCH35P4R70JE

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TCH35P4R70JE
Manufacturer	Ohmite
Catalog	Through Hole Resistors
Description	RES 4.7 OHM 5% 35W TO220 / 4.7 Ohms ±5% 35W Through Hole Resistor TO-220-2 Moisture Resistant Thick Film
Datasheet	TCH35P4R70JE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Ohmite
Series	TCH
Package	Tube
Resistance	4.7 Ohms
Tolerance	±5%
Power (Watts)	35W
Composition	Thick Film
Features	Moisture Resistant
Temperature Coefficient	±100ppm/°C
Temperature Range - Operating	-55°C ~ 175°C
Package / Case	TO-220-2
Supplier Device Package	TO-220
Dimension	0.400" L x 0.175" W (10.16mm x 4.44mm)
Height - Seated (Max)	0.591" (15.00mm)
Number of Terminations	2
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.29.0000
Other Names	OHTCH35P4R70JE,2266-TCH35P4R70JE,OHTCH35P4R70JE-ND
Standard Package	30
Win Source Part Number	1006348-TCH35P4R70JE
Ultra Librarian 3D Model	Ultra Librarian TCH35P4R70JE CAD Model

Alternative Products

Description

The TCH35P4R70JE is a through-hole resistor from Ohmite.

Type: Thick Film resistor
Power Rating: 35W
Resistance: 4.7 Ohms
Tolerance: ±5%
Temperature Coefficient: ±100ppm/°C
Package: TO-220-2 package
Height: 0.591" (15.00mm)
Temperature Range: -55°C to 175°C
Packaging: Tube
Standard Package: 30
Application: Ideal for use in electronic devices that require high power and precision resistors.
