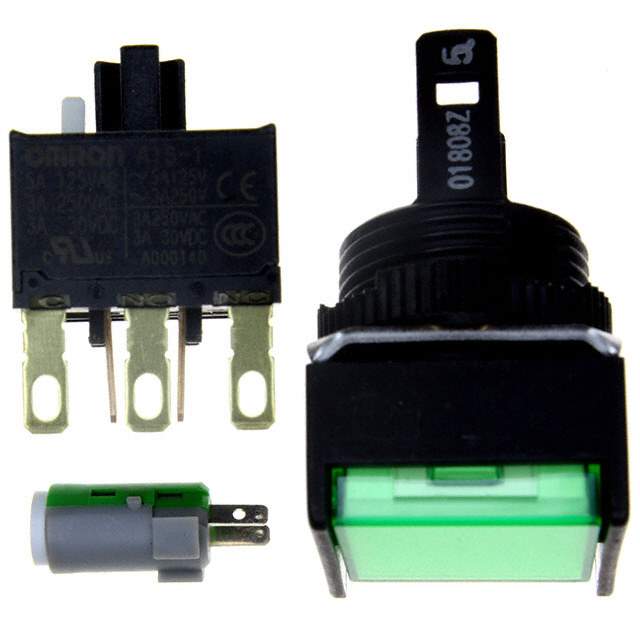

A16L-AGM-24D-1 Real Image
Same model may have multiple batches, images only for reference.

A16L-AGM-24D-1

Part No A16L-AGM-24D-1
Manufacturer Omron
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 5A 125V / Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr Omron Automation and Safety
Series A16
Package Bulk
Mounting Type Panel Mount, Front
Type Standard, Illuminated
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Green
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 24 VDC
Termination Style Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Panel Cutout Dimensions Circular - 16.00mm Dia
Temperature Range - Operating -10°C ~ 55°C
Mechanical Life 2,000,000 Cycles
Electrical Life 100,000 Cycles
Base Product Number A16
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1340402-A16L-AGM-24D-1
Ultra Librarian 3D Model Ultra Librarian A16L-AGM-24D-1 CAD Model

Description

The Omron A16 series pushbutton switch is a standard, illuminated switch with a square, button actuator type.

  • Series: A16
  • Switch Type: Pushbutton, Illuminated
  • Actuator Type: Square Button
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Mechanical Life: 2,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Illumination Type: LED
  • Illumination Color: Green
  • Nominal Illumination Voltage: 24 VDC
  • Voltage Rating (AC): 125 V
  • Current Rating (AC): 5A
  • Operating Temperature: -10°C to 55°C
  • Ingress Protection: IP40
  • Mounting Type: Panel Mount, Front
  • Packaging: Bulk
  • Panel Cutout Dimensions: Circular - 16.00mm Dia.
