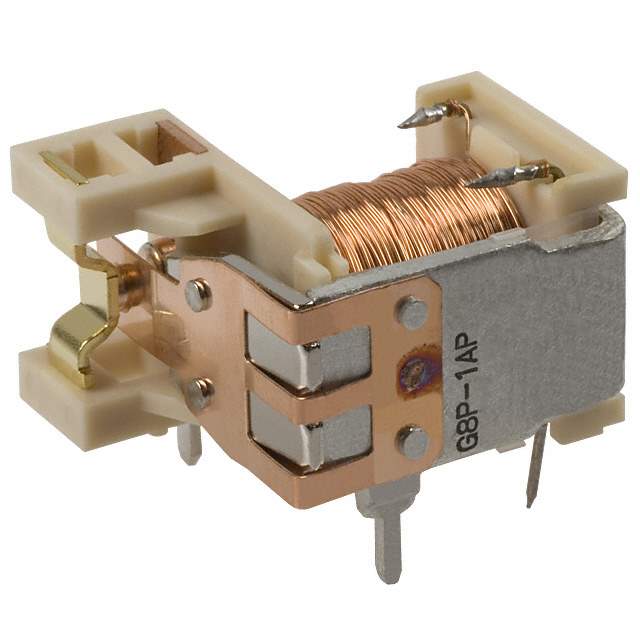

G8P-1AP DC48 Real Image
Same model may have multiple batches, images only for reference.

G8P-1AP DC48

Part No G8P-1AP DC48
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 48V
Datasheet
G8P-1AP DC48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Series G8P
Packaging Bulk
Part Status Obsolete(EOL)
Relay Type General
Coil Type Non Latching
Coil Current 19mA
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 250VAC, 28VDC - Max
Turn On Voltage (Maximum) 36 VDC
Turn Off Voltage (Minimum) 4.8 VDC
Operate Time 15ms
Release Time 10ms
Features Insulation - Class F
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 900 mW
Coil Resistance 2.48 kOhms
Operating Temperature Range -55°C ~ 105°C
Win Source Part Number 792656-G8P-1AP DC48
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G8P-1AP DC48 CAD Model

Description

The Omron Electronics Inc-EMC Div 792656-G8P-1AP DC48 is a medium-popularity electronic component with limited supply and demand status.

  • Description: General-purpose relay
