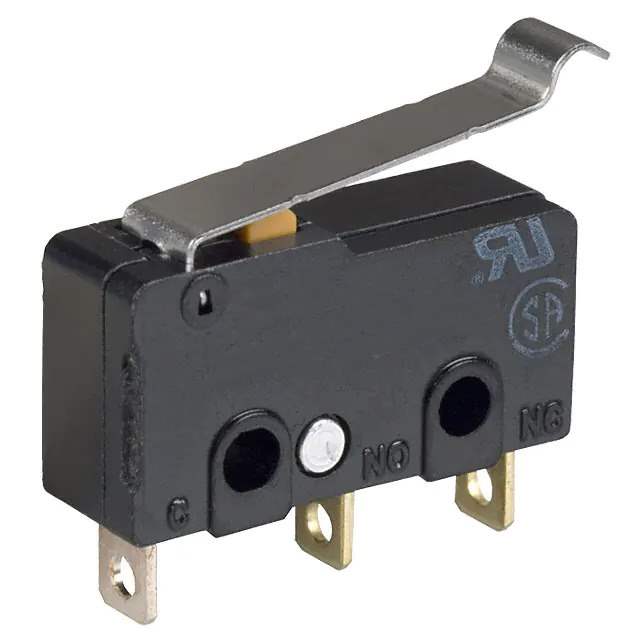

SS-5GL13 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL13

Part No SS-5GL13
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
SS-5GL13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series SS
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Operating Position 0.420" (10.7mm)
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 849751-SS-5GL13
Ultra Librarian 3D Model Ultra Librarian SS-5GL13 CAD Model

Description

The 849751-SS-5GL13 is a limit switch from the SS series, manufactured by Omron.

  • Termination Style: Solder Lug
  • Package: Tray
  • Standard Package: 500 pieces
  • Ingress Protection: IP40
  • Voltage Rating: 125V AC
  • Circuit Configuration: SPDT (Single Pole Double Throw)
  • Switch Function: On-Mom
  • Actuator Type: Lever, Simulated Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Temperature Range: -25°C to 85°C
