Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer ON Semiconductor
Packaging Reel - TR
Memory Type Non-Volatile
Memory Format EEPROM
Technology EEPROM
Memory Size 64Kb (8K x 8)
Clock Frequency 1MHz
Write Cycle Time - Word, Page 5ms
Access Time 400ns
Memory Interface I2C
Operating Supply Voltage 1.7 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD

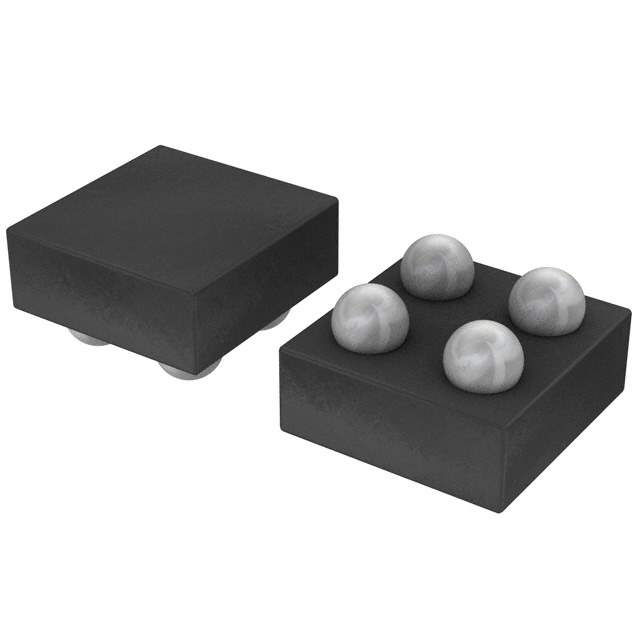

Package 4-XFBGA, WLCSP
Manufacturer Package 4-WLCSP (0.76x0.76)
Win Source Part Number 1158933-CAT24C64C4CTR
Manufacturer Homepage www.onsemi.com
Family Name CAT24C64
Estimated EOL Date 2025
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian CAT24C64C4CTR CAD Model

Description

ON Semiconductor CAT24C64C4CTR EEPROM

The ON Semiconductor CAT24C64C4CTR is a high-performance, 64-Kb Serial EEPROM (Electrically Erasable Programmable Read-Only Memory) integrated circuit, designed to provide a robust storage solution for advanced electronic systems. This device is part of ON Semiconductor's extensive range of non-volatile memory products and offers a significant amount of data storage capacity for your firmware, parameter settings, calibration data, and other critical application data.

Key Features:

  • Memory Size: 64 Kb (8,192 x 8-bit organization), which allows for ample storage for a wide range of applications and data management requirements.
  • Interface: I²C (Inter-Integrated Circuit) serial interface, which supports standard (100 kHz), fast (400 kHz), and fast-plus (1 MHz) I²C protocol, making it compatible with a wide variety of microcontrollers and processors.
  • Write Cycle Time: 5 ms (typical), enabling quick and efficient data writing operations.
  • Operating Voltage Range: 1.7V to 5.5V, which provides flexibility for use in low-power and standard applications, ensuring compatibility with both 3.3V and 5V systems.
  • Endurance: 1 million write cycles, guaranteeing a long operational lifespan and reliability for applications where frequent data updates are necessary.
  • Data Retention: 100 years, offering a stable and persistent memory storage solution.
  • Temperature Range: Industrial temperature range of -40°C to +85°C, ensuring stable operation under extreme conditions.
  • Packaging: Supplied in a TSSOP-8 package, which is suitable for surface-mount technology (SMT) and ideal for space-constrained applications.

Applications:

The CAT24C64C4CTR EEPROM is well-suited for a variety of applications, including:

  • Consumer electronics
  • Industrial automation
  • Automotive systems
  • Medical devices
  • Smart cards
  • Networking equipment

With its robust feature set, the ON Semiconductor CAT24C64C4CTR EEPROM is an excellent choice for designers who require a reliable and flexible non-volatile memory solution for their advanced electronic systems.
