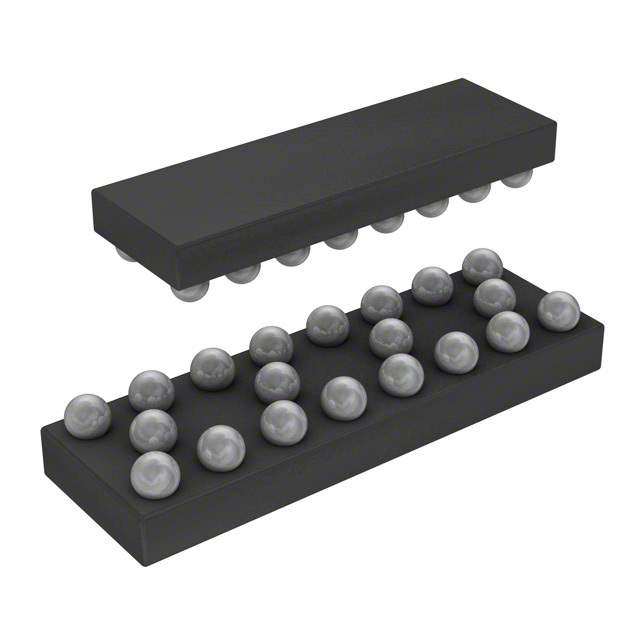

The CM1405-03CP is a cutting-edge EMI filter array with integrated ESD protection, designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This product is specifically engineered to provide superior electromagnetic interference (EMI) filtering and electrostatic discharge (ESD) protection in a single, compact package. It is an ideal solution for electronic applications that require both signal integrity and robust protection against external disturbances.

Key Features

• Integrated ESD Protection: The CM1405-03CP offers excellent ESD protection, meeting IEC61000-4-2 Level 4 standards, which ensures the device can withstand electrostatic discharges without suffering damage.
• Low Pass Filter Design: The low pass filter design provides effective EMI filtering, preserving signal integrity by attenuating unwanted high-frequency noise.
• Compact Size: The device comes in a small package, making it suitable for space-constrained applications while maintaining high performance.
• Multiple Channels: This EMI filter array features three channels, allowing for the simultaneous filtering and protection of multiple lines, which is particularly beneficial for compact devices with limited board space.
• High-Speed Data Line Compatibility: The CM1405-03CP is designed to be compatible with high-speed data lines, such as those used in USB 2.0 and HDMI interfaces, ensuring that data transfer is not compromised by the filtering process.

Applications

The versatile nature of the CM1405-03CP makes it suitable for a wide array of applications. It is particularly well-suited for:

• Mobile Phones
• Portable Electronics
• Personal Digital Assistants (PDAs)
• Notebook Computers
• Digital Cameras
• MP3 Players
• Other devices requiring EMI filtering and ESD protection

Technical Specifications

Overall, the CM1405-03CP from ON Semiconductor is an exceptional choice for designers looking to enhance their product's performance by integrating both EMI filtering and ESD protection without compromising on space or signal quality.
