Products specifications

Manufacturer ON Semiconductor
Packaging Reel
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology DrMOS
Rds On (Typ) 1Ohm LS, 1Ohm HS
Current - Output / Channel 38A
Supply Voltage (V) 4.5V ~ 5.5V
Voltage - Load 3V ~ 24V
Temperature Range - Operating -40°C ~ 150°C
Features Bootstrap Circuit, Status Flag
Fault Protection Over Temperature, Shoot-Through, UVLO
Mounting Style SMD
Manufacturer Package 40-PowerTFQFN
Supplier Device Package 40-PQFN (6x6)
Part Number Series FDMF6705
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804259-FDMF6705
Ultra Librarian 3D Model Ultra Librarian FDMF6705 CAD Model

Description

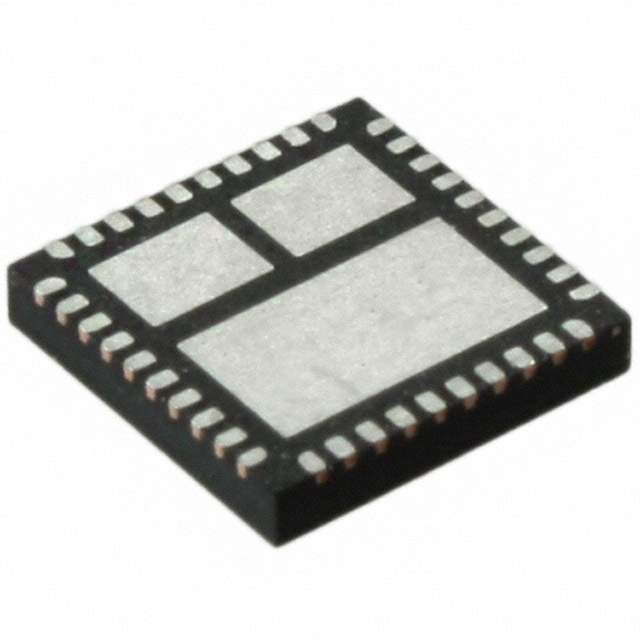

ON Semiconductor FDMF6705 - Integrated Power Stage Module

The ON Semiconductor FDMF6705 is a highly integrated power stage module designed to deliver exceptional performance and efficiency for a wide range of applications. This advanced module combines a driver IC, two power MOSFETs, and a Schottky diode into a compact Power QFN package, making it an ideal solution for space-constrained systems that require high power density and superior thermal performance.

Key Features

  • High-Efficiency Power Conversion: The FDMF6705 utilizes state-of-the-art technology to achieve high efficiency, which is critical for minimizing heat generation and improving system reliability.
  • Integrated Design: By integrating the driver, MOSFETs, and diode into a single package, the FDMF6705 simplifies the design and reduces the footprint required on the PCB, leading to a more compact and cost-effective solution.
  • Optimized for Fast Switching: The module is designed to support fast switching speeds, which is essential for applications that require quick response times and high-frequency operation.
  • Robust Thermal Performance: The Power QFN package is engineered for enhanced thermal dissipation, ensuring that the FDMF6705 operates reliably even under high power conditions.
  • Low Parasitic Inductance: The layout of the integrated components is optimized to reduce parasitic inductance, which improves the overall performance and efficiency of the power stage.

Applications

  • DC-DC Converters
  • Computing and Server Power Supplies
  • Telecommunications Equipment
  • Gaming Consoles
  • Networking and Storage Systems
  • Point of Load (POL) Modules

The FDMF6705 from ON Semiconductor is a testament to the company's commitment to providing innovative power management solutions. With its compact design, high efficiency, and robust thermal management, the FDMF6705 stands out as a superior choice for designers looking to optimize their power systems for performance and space savings. Whether it's for consumer electronics, industrial applications, or high-performance computing, the FDMF6705 is engineered to meet the stringent requirements of modern power delivery systems.
