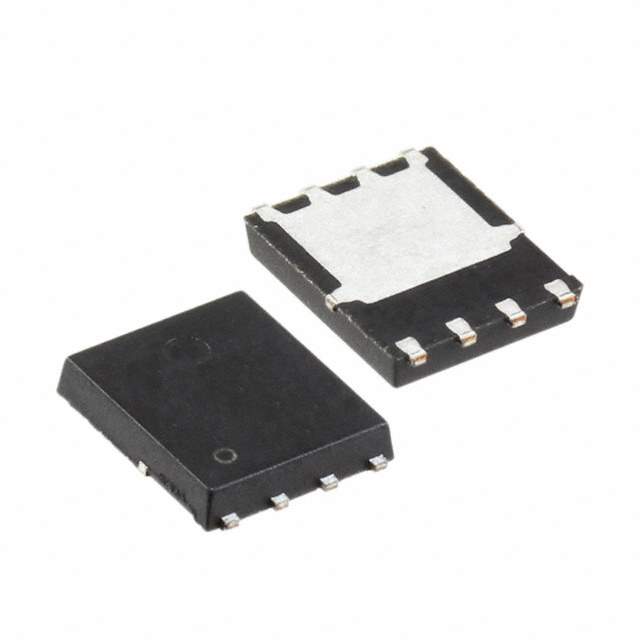

FDWS9510L-F085

Part No FDWS9510L-F085
Manufacturer ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 40V 50A 8DFN  /  P-Channel 40 V 50A (Tc) 75W (Tj) Surface Mount 8-DFN (5.1x6.3)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr onsemi
Series PowerTrench®
Package Tape & Reel
Product Status Obsolete
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 13.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 37 nC @ 10 V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 2320 pF @ 20 V
Power Dissipation (Max) 75W (Tj)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 8-DFN (5.1x6.3)
Package / Case 8-PowerTDFN
Base Product Number FDWS9510
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names FDWS9510L-F085OSTR,FDWS9510L-F085OSDKR,FDWS9510L-F085-ND,FDWS9510L-F085OSCT
Standard Package 3,000
Win Source Part Number 1059019-FDWS9510L-F085
Ultra Librarian 3D Model Ultra Librarian FDWS9510L-F085 CAD Model

Description

The FDWS9510L-F085 is a state-of-the-art dual N-Channel PowerTrench® MOSFET designed by ON Semiconductor, a leader in energy-efficient innovations. This power MOSFET is optimized for synchronous rectification in DC/DC converters and high-performance power management applications. With its advanced features, the FDWS9510L-F085 is a perfect choice for engineers looking to improve efficiency and thermal performance in their designs.

Key Features:

  • Low R<sub>DS(on): The FDWS9510L-F085 boasts an exceptionally low on-resistance, resulting in reduced conduction losses and improved overall efficiency.
  • High Current Capability: This MOSFET is capable of handling high currents, making it suitable for demanding applications that require robust power handling.
  • PowerTrench® Technology: ON Semiconductor's proprietary PowerTrench® process allows for a very low gate charge (Qg), which translates to faster switching speeds and reduced switching losses.
  • Dual N-Channel Configuration: The dual N-Channel configuration enables space-saving designs by combining two MOSFETs in a single package, simplifying the PCB layout and reducing component count.
  • Thermal Management: With an excellent thermal profile, the FDWS9510L-F085 ensures reliable operation even under high temperature conditions, making it suitable for thermally challenging environments.

Applications:

The FDWS9510L-F085 is ideal for a wide range of applications, including:

  • DC/DC Converters
  • Power Supplies for CPU, GPU, and Memory
  • Point of Load (POL) Modules
  • Synchronous Buck or Boost Converters
  • Motor Drives and Inverters

Technical Specifications:

Parameter Value Package Power56 R<sub>DS(on) Typically 8.5 mΩ Drain-Source Voltage (V<sub>DSS) 30 V Continuous Drain Current (I<sub>D) 15 A Power Dissipation (P<sub>D) 2.5 W

With its robust package, high efficiency, and reliable performance, the FDWS9510L-F085 from ON Semiconductor is an excellent choice for designers looking to create compact, high-performance power systems.
