Products specifications

Categories Integrated Circuits (ICs)
Manufacturer ON Semiconductor
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel, PWM
Technology Bipolar
Applications General
Output Current 3A
Operating Supply Voltage 3 V ~ 5.25 V
Voltage - Load 8 V ~ 28 V
Operating Temperature Range -20°C ~ 85°C (TA)
Mounting Style Through Hole

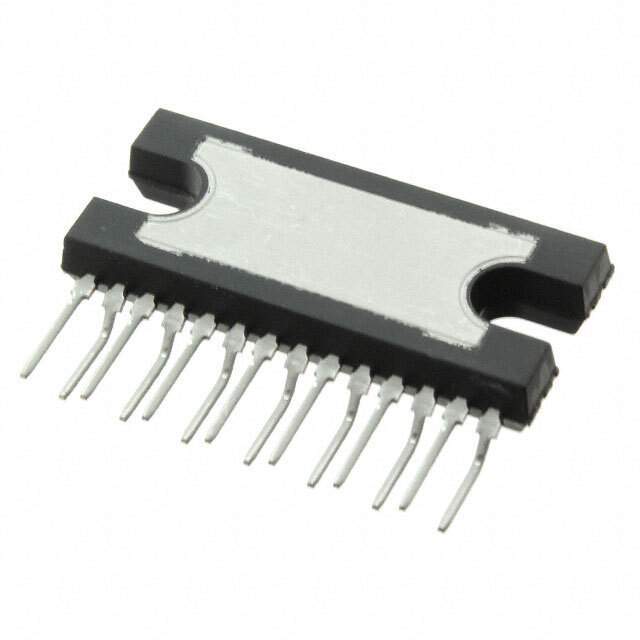

Package 14-SIP, Exposed Pad, Formed Leads
Manufacturer Package 14-SIPHZ
Win Source Part Number 778294-LB11651-E
Popularity Medium
Supply and Demand Status Limited
Family Name LB11651
Introduction Date September 12, 2003
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LB11651-E CAD Model

Description

The LB11651-E from ON Semiconductor is a high-performance, three-phase brushless DC motor driver designed for efficient and precise motor control applications. It is an ideal solution for a wide range of applications, including fans, pumps, and other home appliances that require reliable and efficient motor operation.

Key Features

  • Integrated Output Transistors: The LB11651-E includes built-in high-efficiency output transistors that are capable of delivering the required current to the motor without the need for external devices.
  • Low Power Consumption: Designed with energy efficiency in mind, this motor driver ensures low power consumption, making it suitable for battery-powered devices or energy-saving applications.
  • Wide Operating Voltage Range: It supports a broad range of supply voltages from 7V to 12V, providing flexibility in various system designs.
  • Protection Features: The device includes multiple protection features such as thermal shutdown, overcurrent protection, and undervoltage lockout to ensure the safety and longevity of the motor and the driver itself.
  • Soft Switching: To reduce electromagnetic interference (EMI) and noise, the LB11651-E utilizes soft switching techniques, which also contribute to the longevity of the motor by reducing stress on the components.

Applications

The LB11651-E is versatile and can be used in various applications that require precise and efficient motor control. Some of the typical applications include:

  • Cooling fans for electronic equipment
  • Blowers for heating and ventilation systems
  • Pumps for water and fuel circulation
  • Home appliances such as air purifiers and humidifiers

Technical Specifications

Parameter Value Operating Voltage (V) 7 to 12 Output Current (A) Up to 1.2 (peak) Protection Features Thermal shutdown, Overcurrent, UVLO Package Multiwatt V

With its robust design, the LB11651-E from ON Semiconductor is an excellent choice for designers looking to implement a reliable and energy-efficient motor control solution in their products.
