Products specifications

Manufacturer ON Semiconductor
Packaging Tube
Part Status Obsolete (End Of Life)
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel, Serial
Technology Bipolar
Applications Use For General
Current - Output 1.5A
Supply Voltage (V) 4.5V ~ 5.5V
Voltage - Load 10V ~ 45V
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole

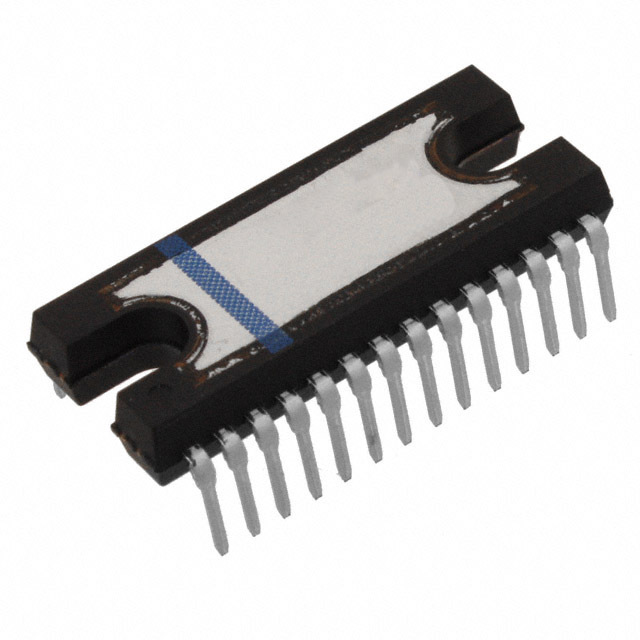

Manufacturer Package 28-SDIP (0.500", 12.70mm) Exposed Pad
Supplier Device Package 28-HDIP
Part Number Series LB1946
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806519-LB1946-E
Ultra Librarian 3D Model Ultra Librarian LB1946-E CAD Model

Description

ON Semiconductor LB1946-E Motor Driver IC

The LB1946-E from ON Semiconductor is a high-performance motor driver IC designed to cater to the needs of modern, compact motor-driven applications. This versatile component is engineered to drive both bipolar and unipolar stepper motors, making it an ideal choice for a wide range of applications including office automation machines, home appliances, and industrial equipment.

The LB1946-E stands out with its capability to deliver output currents up to 1A, allowing it to power motors in mid-range power applications. The IC operates on a supply voltage range from 10V to 32V, providing flexibility for various system designs and ensuring compatibility with a broad spectrum of motors.

One of the defining features of the LB1946-E is its built-in overcurrent protection. This safety mechanism helps prevent damage to the IC and the motor in the event of an unexpected surge in current, thereby enhancing the reliability and longevity of the end product. Additionally, the thermal shutdown feature further protects the IC by turning off the output stages if the chip's temperature exceeds safe operating limits.

The LB1946-E also boasts a low saturation voltage, which reduces power loss and improves efficiency, a critical aspect for battery-powered or energy-conscious applications. Furthermore, the IC incorporates a standby function that reduces power consumption when the motor is not in operation, contributing to energy savings and extending battery life in portable devices.

For ease of integration, the LB1946-E comes in a compact 16-pin DIP (Dual In-line Package) or SOP (Small Outline Package), allowing for space-saving designs without compromising on performance. Its simple logic interface enables straightforward control via microcontrollers or other logic devices, making it accessible for engineers to implement in their designs.

Overall, the ON Semiconductor LB1946-E motor driver IC is a robust, efficient, and versatile solution for driving stepper motors in a variety of applications, offering designers a reliable and high-performing component that is ready to meet the demands of modern electronic devices.
