ON Semiconductor LM2575T-5G Voltage Regulator

The ON Semiconductor LM2575T-5G is a versatile and robust step-down voltage regulator that provides all the active functions necessary for a high-efficiency power supply. Designed to deliver a fixed output voltage of 5V with an output current capability of up to 1A, this regulator is an ideal solution for a wide range of applications, including consumer electronics, office equipment, and industrial machinery.

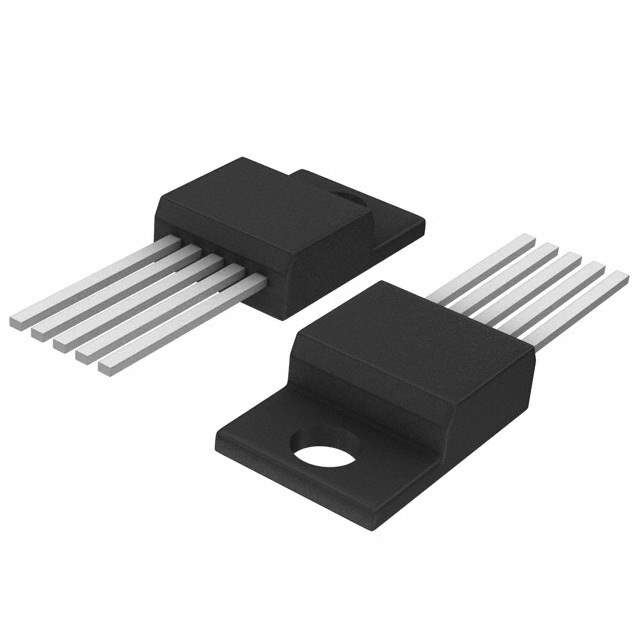

Constructed in a TO-220 package, the LM2575T-5G is designed for simplicity and ease of use, requiring a minimal number of external components for operation. The integrated circuit incorporates a fixed-frequency oscillator, a precision reference voltage, a high-gain error amplifier, a current limit circuit, and an internal thermal shutdown feature. These features ensure stable and reliable operation even under varying input voltage and load conditions.

The device operates at a switching frequency of 52kHz, which strikes an optimal balance between efficiency and the size of external components, allowing for compact power supply designs. Additionally, the LM2575T-5G includes a standard series of inductors and capacitors that are readily available, making it a convenient choice for designers and engineers.

One of the key advantages of the LM2575T-5G is its high efficiency, which can be up to 90% depending on the input voltage and load conditions. This efficiency reduces the need for heat sinks and simplifies thermal management, making it an energy-saving choice for modern electronic devices.

The ON Semiconductor LM2575T-5G also features built-in protection mechanisms. The current limit circuit protects the device and the load from overcurrent conditions, while the thermal shutdown feature safeguards against excessive temperatures that could potentially damage the regulator or the surrounding components.

Overall, the LM2575T-5G from ON Semiconductor is a reliable and efficient voltage regulator that offers a cost-effective solution for a variety of power supply requirements. Its robust design, ease of use, and integrated features make it an excellent choice for engineers looking to create stable and efficient power supplies.
