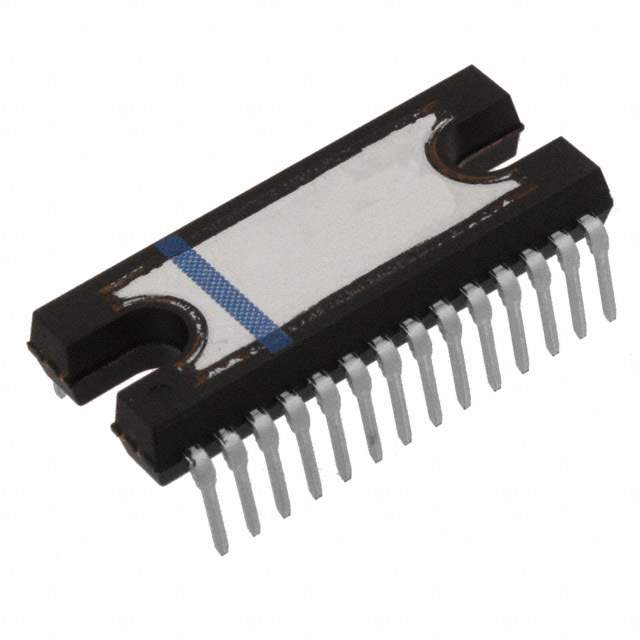

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr onsemi
Package Bulk
Product Status Obsolete
Motor Type - Stepper Bipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (4)
Interface Parallel
Technology BiCDMOS
Step Resolution 1, 1/2, 1/4, 1/16
Applications General Purpose
Current - Output 2.5A
Voltage - Supply 0V ~ 5.5V
Voltage - Load 9V ~ 32V
Temperature Range - Operating -20°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 28-SDIP (0.500", 12.70mm) Exposed Pad
Supplier Device Package 28-HDIP
Base Product Number LV877
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-LV8772-E-ON,LV8772-EOS,ONSONSLV8772-E,LV8772E,LV8772-E-ND
Standard Package 500
Win Source Part Number 1021854-LV8772-E
Ultra Librarian 3D Model Ultra Librarian LV8772-E CAD Model

Description

The ON Semiconductor LV8772-E is a highly efficient and reliable step-down (buck) converter designed for a variety of applications. This compact and versatile power management integrated circuit (IC) is ideal for portable devices, embedded systems, and any electronics requiring a stable and efficient voltage conversion.

Key Features

  • Wide Input Voltage Range: The LV8772-E operates with an input voltage range from 4.5V to 23V, making it suitable for a broad array of power sources, including multi-cell batteries and industrial power supplies.
  • Adjustable Output Voltage: Users can set the output voltage from 0.8V to the input voltage, ensuring compatibility with modern low-voltage digital ICs and microcontrollers.
  • High Efficiency: With its advanced design, the LV8772-E achieves high efficiency, reducing power loss and heat generation, which is crucial for battery-powered applications.
  • Integrated MOSFET: The inclusion of an internal low on-resistance MOSFET simplifies the design and minimizes external component count, saving space and cost.
  • Protection Features: The device is equipped with overcurrent protection (OCP), thermal shutdown (TSD), and under-voltage lockout (UVLO), safeguarding the IC and the system from various fault conditions.
  • Adjustable Switching Frequency: The LV8772-E allows for an adjustable switching frequency from 300kHz to 2MHz, enabling designers to balance between efficiency and component size.

Applications

  • Portable and battery-powered devices
  • Industrial power systems
  • Automotive electronics
  • Networking and telecommunications
  • Consumer electronics

The LV8772-E from ON Semiconductor is a testament to the company's commitment to providing power management solutions that meet the demands of modern electronic devices. Its adaptability, efficiency, and protective features make it an excellent choice for designers looking to optimize their power systems while maintaining a high level of reliability and performance.
