The MC33166TH is a high-performance voltage regulator from ON Semiconductor, designed to offer both reliability and efficiency for a wide range of applications. This component is part of ON Semiconductor's extensive portfolio of power management solutions, tailored to meet the stringent requirements of modern electronic devices.

Key Features

• Adjustable Output Voltage: This regulator allows for an adjustable output voltage, giving designers the flexibility to use it in various applications where specific voltage levels are needed.
• High Output Current: The MC33166TH is capable of delivering a high output current, making it suitable for powering heavy loads.
• Thermal Shutdown: Safety is a priority with this device, as it includes a thermal shutdown feature that protects the regulator from overheating and potential damage.
• Low Standby Current: The low standby current feature ensures that the device conserves power when it is in idle mode, contributing to the overall energy efficiency of the system.

Applications

The MC33166TH voltage regulator is versatile and can be used in a variety of applications, including:

• Switching regulators for computers and computer peripherals
• DC-DC converters
• Power supplies for consumer electronic devices
• Automotive applications requiring robust power management

Product Specifications

The MC33166TH features several specifications that make it a solid choice for your power regulation needs:

• Voltage Range: It operates over a wide voltage range, accommodating different levels of input and providing stable output.

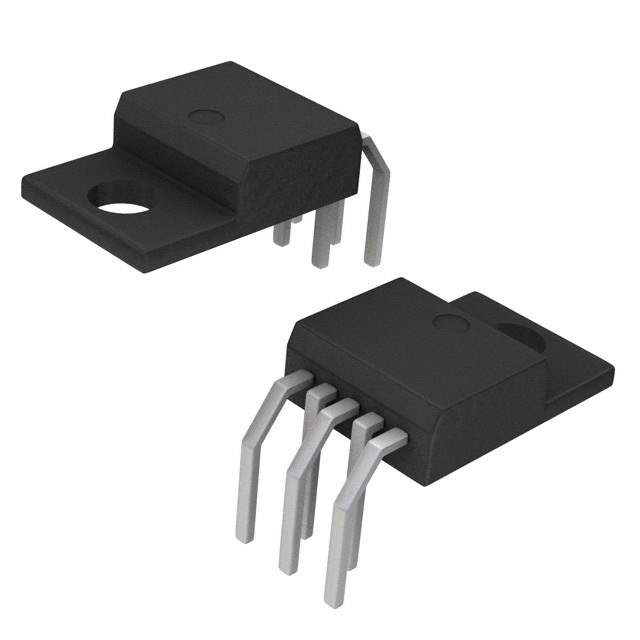

• Package: Housed in a TO-220 package, the MC33166TH is designed for easy integration into a variety of circuit designs.
• Protection Features: In addition to thermal shutdown, it also includes overcurrent protection and a safe operating area compensation, enhancing its reliability under different conditions.

In conclusion, the ON Semiconductor MC33166TH voltage regulator is a robust and flexible solution for managing power in your electronic designs. Its combination of adjustable voltage, high current capability, and protective features ensures that it can meet the demands of a wide range of applications.
