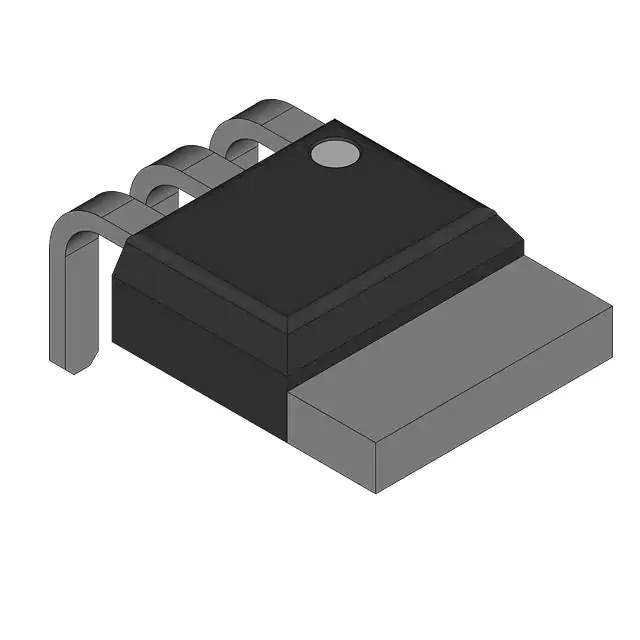

MJD32C1

Part No MJD32C1
Manufacturer ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANSISTOR / Bipolar (BJT) Transistor
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr ON Semiconductor
Series *
Package Bulk
Product Status Active
Standard Package 1,401 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 640970-MJD32C1
Ultra Librarian 3D Model Ultra Librarian MJD32C1 CAD Model

Description

Product Overview: ON Semiconductor MJD32C1

The MJD32C1 is a high-quality power transistor designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This product is part of the MJD Series, which is renowned for its exceptional performance in power amplification and switching applications. The MJD32C1 is specifically engineered to cater to the demanding requirements of electronic circuits, providing a reliable and efficient solution for designers and engineers.

Key Features

  • High Current Rating: The MJD32C1 is capable of handling significant current levels, making it suitable for high-power applications.
  • Low Collector-Emitter Saturation Voltage: This feature ensures minimal voltage drop across the transistor, leading to improved efficiency and reduced power loss.
  • Fast Switching Speed: The device is designed for quick transitions between on and off states, which is critical for high-frequency operations.
  • Complementary PNP Type Available: The MJD32C1 has a complementary PNP type, allowing for flexibility in designing push-pull and other complementary configurations.
  • Surface Mount Package: The transistor comes in a surface-mount package, making it ideal for compact and space-constrained applications.
  • RoHS Compliant: ON Semiconductor ensures that the MJD32C1 adheres to the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly.

Applications

The MJD32C1 is versatile and can be used in a wide range of electronic devices and systems. Its primary applications include:

  • Power regulators
  • DC-DC converters
  • Motor control circuits
  • Audio amplifiers
  • Switching circuits
  • General-purpose amplification

With its robust construction and proven performance, the MJD32C1 from ON Semiconductor is an excellent choice for any application requiring a reliable NPN power transistor. Its combination of high current handling, low saturation voltage, and fast switching makes it an indispensable component in modern electronic designs.

Technical Specifications

  • Type: NPN
  • Collector-Emitter Voltage (Vceo): 100V
  • Collector Current (Ic): 3A
  • Power Dissipation (Pd): 20W
  • Operating Junction Temperature (Tj): -55°C to +150°C

For detailed technical specifications and application guidelines, please refer to the official ON Semiconductor MJD32C1 datasheet available on their website.
