Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 6A
Voltage - Forward (Vf) (Max) @ If 900mV @ 6A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 25μA @ 100V
Mounting Through Hole
Case / Package Microde Button
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 1079616-MR751RL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MR751RL CAD Model

Description

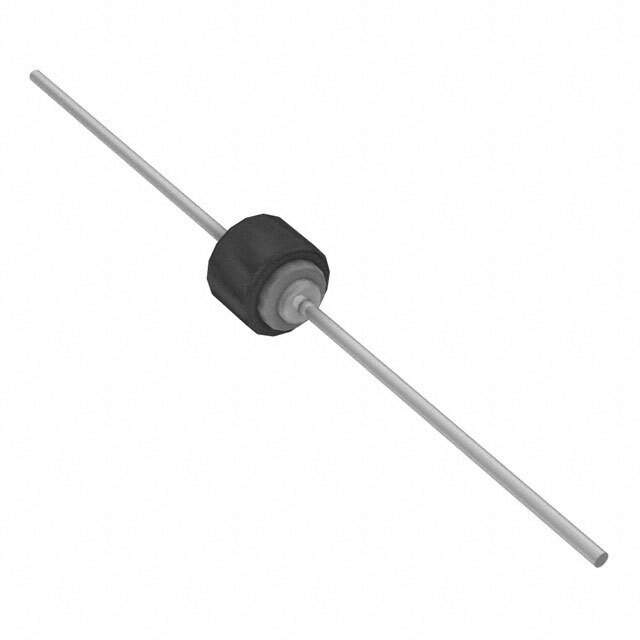

ON Semiconductor MR751RL Standard Recovery Diode

The ON Semiconductor MR751RL is a robust standard recovery diode designed to provide efficient and reliable performance for a wide range of applications. This diode is a popular choice among engineers and technicians for its high surge capability and low forward voltage drop, making it suitable for use in power supplies, converters, and as a freewheeling diode in various electronic circuits.

The MR751RL diode features a continuous forward current rating of 6A, which allows it to handle moderate power levels, while its peak repetitive reverse voltage is rated at 100V. This makes it well-suited for low to medium voltage applications where a fast recovery time is not critical, but reliability and durability are of utmost importance.

Constructed with a lead formed for easy mounting, the MR751RL comes in an axial-lead package, which is designed to offer improved thermal performance and a compact footprint on printed circuit boards. The device is also characterized by its low leakage current, ensuring minimal power loss when the diode is in its off state and contributing to the overall energy efficiency of the system it is used in.

ON Semiconductor's MR751RL diode is also known for its ruggedness, capable of withstanding harsh operating conditions. It can tolerate high surge currents, which is essential for protecting circuits during momentary overloads. The diode's standard recovery time is suitable for applications where switching speed is not the primary concern, but the ability to handle occasional spikes in current is necessary.

Environmentally friendly, the MR751RL is RoHS compliant, meaning it does not contain hazardous substances commonly found in electronic components. This compliance ensures that the product is suitable for use in a variety of markets, including consumer electronics, industrial systems, and automotive applications where environmental regulations are stringent.

In summary, the ON Semiconductor MR751RL is a dependable choice for designers looking for a standard recovery diode that offers a balance between performance and cost. With its robust construction, high surge capability, and energy-efficient operation, it stands as a solid component in power management and rectification tasks.
