Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr ON Semiconductor
Series SWITCHMODE™
Package Bulk
Product Status Obsolete
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 890 mV @ 4 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 5 µA @ 150 V
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package Axial
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number MUR41
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 645874-MUR415
Ultra Librarian 3D Model Ultra Librarian MUR415 CAD Model

Description

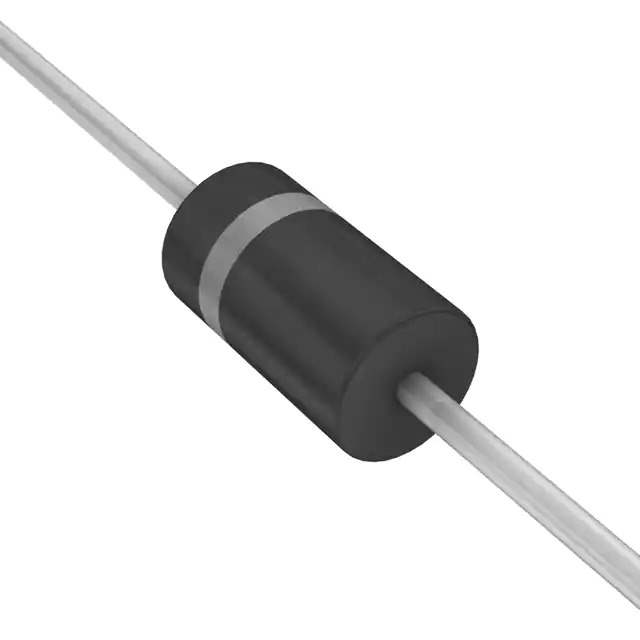

The ON Semiconductor MUR415 is a high-performance ultrafast rectifier designed to meet the stringent requirements of today's sophisticated electronic devices. This rectifier boasts a reverse recovery time of just 25 nanoseconds, making it an ideal choice for high-speed switching applications where efficiency and reliability are critical.

With a maximum repetitive peak reverse voltage of 150V and a forward continuous current of 4A, the MUR415 is well-suited for a wide range of applications including power supplies, inverters, converters, and freewheeling diodes in various electronic circuits. Its low forward voltage drop helps to minimize power loss and improve system efficiency, which is particularly important in battery-powered devices and energy-saving applications.

The MUR415 is housed in an axial leaded package that ensures ease of installation and compatibility with standard PCB layouts. The device's robust construction allows it to withstand harsh environments and ensures a long operational lifespan. Furthermore, it features a glass passivated junction that provides reliable operation and a stable performance over its entire temperature range.

Key features of the MUR415 include:

  • Ultrafast reverse recovery time: 25ns
  • Low forward voltage drop
  • High surge current capability
  • Peak repetitive reverse voltage: 150V
  • Forward continuous current: 4A
  • Operating junction temperature range: -65°C to +175°C
  • Axial lead package for easy mounting
  • High reliability and robust design

Engineers and designers can rely on the MUR415 for its exceptional performance in high-frequency circuits. Its ultrafast recovery time reduces losses and noise, contributing to the overall performance and efficiency of the end product. Whether used in power management, automotive, or consumer electronics, the ON Semiconductor MUR415 ultrafast rectifier is a trusted component that ensures your designs perform at their best.
